VX214FLAXB https://www.bdiexpress.com/medias/INDSMCVALVEX-VX214DZ2BBXB-DT-WB-300x300.jpg?context=bWFzdGVyfHJvb3R8OTU1MnxpbWFnZS9qcGVnfGFEQmpMMmhtT1M4eE1Ea3dPRGd6TlRnME1EQXpNQzlKVGtSVFRVTldRVXhXUlZoZlZsZ3lNVFJFV2pKQ1FsaENYMFJVWDFkQ1h6TXdNSGd6TURBdWFuQm58MzRkMDIxY2IyYmIzZjZlZTI5ODc2NGYzYmNkYjc0MGZjYzg4NTMxMjBlZDZjMWE5MTIzZTQ1Y2U5OGIwNGQ0OQ
Back to search results
21915253 Hydraulic and Pneumatic Valves

SMC SMC

VX214FLAXB

Description

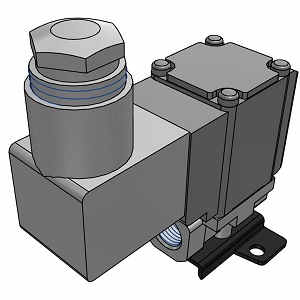

SMC VX214FLAXB

Poppet Solenoid Valve; 1/4" G; 2 Port | 2 Way; 2 Position; 230/50-60 VAC; Pneumatic; Solenoid | Spring Return; 101.325 KPa; 34 To 140 Deg F; Viton Seal; Brass

Part #

VX214FLAXB

BDI #
21915253

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / US pound
0
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
1/4" G
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
230/50-60 VAC
Media
Pneumatic
Maximum Pressure
101.325 KPa
Operating Pressure Range
0.1 Pa-abs To 101.325 KPa
Operating Temperature Range
34 To 140 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
0.62 Cv Factor | 5MM Orifice Size | Medium Vacuum Fluid | Normally Closed | Class B | DIN Terminal with Surge Voltage Suppressor | Size 1 | With Bracket
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.728
Long Description
Poppet Solenoid Valve; 1/4" G; 2 Port | 2 Way; 2 Position; 230/50-60 VAC; Pneumatic; Solenoid | Spring Return; 101.325 KPa; 34 To 140 Deg F; Viton Seal; Brass
Overall Width
1.811 Inch | 46 Millimeter
Overall Length
3.406 Inch | 86.5 Millimeter
Overall Height
3.667 Inch | 93.15 Millimeter
