VXH2230-04-2D-B https://www.bdiexpress.com/medias/INDSMCVALVEX-VXH2230-D-B-300x300.jpg?context=bWFzdGVyfHJvb3R8NjY5NHxpbWFnZS9qcGVnfGFEQmxMMmhpT1M4eE1EYzJPVE15T1RNeU5EQTJNaTlKVGtSVFRVTldRVXhXUlZoZlZsaElNakl6TUY5RVgwSmZNekF3ZURNd01DNXFjR2N8MjYwZDZiM2YwNWZhODIxOTEyNzhiZDVkYjcxMzA1ODVhOTU5YTUzYzlkNmM0NTU5YWE1MTkxZjA0Y2RiMTA4Yw
Back to search results
25762834 Hydraulic and Pneumatic Valves

SMC SMC

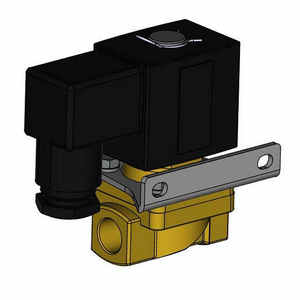

VXH2230-04-2D-B

Description

VXH2230-04-2D-B, 2 PORT VALVE FOR HIGH PRESSURE (SMARTCATALOG)

Valve; Solenoid; 1/2" RC Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 200/50-60 VAC; Solenoid - Air Pilot/Spring Return; Air - Water 290 PSI/Oil 225 PSI; 32 To 140 Deg F; Neoprene Rubber Seal; Brass

Part #

VXH2230-04-2D-B

BDI #
25762834

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
660
Product Group - BDI
F02234
Valve Type
Diaphragm | Solenoid
Port Type
1/2" RC
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Spring Return
Voltage
200/50-60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Water 290 PSI | Oil 225 PSI
Operating Pressure Range
Air - Water 7.5 To 290 PSI | Oil 7.5 To 225 PSI
Operating Temperature Range
32 To 140 Deg F
Seal Type
Neoprene Rubber
Body Material
Brass
Inch - Metric
Inch
Other Features
2.3 Cv Factor | Air - Oil - Water Fluid | With Bracket | DIN Terminal with Connector | High Pressure | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.51446
Long Description
Valve; Solenoid; 1/2" RC Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 200/50-60 VAC; Solenoid - Air Pilot/Spring Return; Air - Water 290 PSI/Oil 225 PSI; 32 To 140 Deg F; Neoprene Rubber Seal; Brass
Overall Height
3.583 Inch | 91 Millimeter
Overall Length
3.681 Inch | 93.5 Millimeter
Overall Width
1.89 Inch | 48 Millimeter
