25646184 Hydraulic and Pneumatic Valves

SMC SMC

XTO-1239-N03

Description

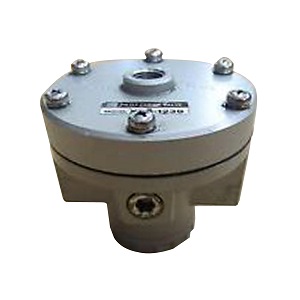

XTO-1239-N03, CHECK VALVE, PILOT 3/8" NPT (SMARTCATALOG)

Valve; 3/8" FNPT Port; 2 Port - 2 Way; 1 Position; Pneumatic; 145 PSI; 23 To 140 Deg F; Buna-N Seal; Aluminum

Part #

XTO-1239-N03

BDI #
25646184

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
550
Product Group - BDI
F02234
Valve Type
Check
Port Type
3/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
1 Position
Actuation
Not Available
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
15 To 145 PSI
Operating Temperature Range
23 To 140 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
Air Fluid
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.30.90.00
Noun
Valve
Keyword String
Check
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.37098
Long Description
Valve; 3/8" FNPT Port; 2 Port - 2 Way; 1 Position; Pneumatic; 145 PSI; 23 To 140 Deg F; Buna-N Seal; Aluminum
Overall Height
3.11 Inch | 79 Millimeter
Overall Width
3.307 Inch | 84 Millimeter
Overall Length
3.307 Inch | 84 Millimeter
