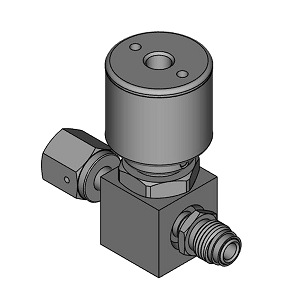

AP4580S 2PW MV6 FV6 SMC/29 https://www.bdiexpress.com/medias/INDSMCVALVEX-AP4580-2PW-MV-FV-300x300.jpg?context=bWFzdGVyfHJvb3R8MTM0Mjh8aW1hZ2UvanBlZ3xhRFl4TDJoa015OHhNREF5T0RVMk16TTJOVGt4T0M5SlRrUlRUVU5XUVV4V1JWaGZRVkEwTlRnd1h6SlFWMTlOVmw5R1ZsOHpNREI0TXpBd0xtcHdad3xiYWY2YTQ3Yzk1NzE0OWZhZGFjMWYyODA0NTA5N2ZmNDFhYzg1ZDBhODkyZmZkYWZkNzgwNjQ0MGFiZmJjMTlm
23604006 Hydraulic and Pneumatic Valves

SMC SMC

AP4580S 2PW MV6 FV6 SMC/29

Description

AP4580S 2PW MV6 FV6 SMC/29 ; SPRINGLESS DIAPHRAGM VALVE SPECIAL

Diaphragm Valve; 3/8" Male Face Seal | 3/8" Female Face Seal Port; 2 Port | 2 Way; 2 Position; Pneumatic; Air Pilot | Air Pilot Return; 247 PSI; 14 To 160 Deg F; Stainless Steel

Part #

AP4580S 2PW MV6 FV6 SMC/29

BDI #
23604006

Details

1037.01 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,037.01 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141621
Weight / Kilogram
0.68
Product Group - BDI
F02352
Valve Type
Diaphragm
Port Type
3/8" Male Face Seal | 3/8" Female Face Seal
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Air Pilot | Air Pilot Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
247 PSI
Operating Pressure Range
Vacuum To 247 PSI
Operating Temperature Range
14 To 160 Deg F
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.5 Cv Factor | UHP Gas Fluid | Normally Open | PCTFE Seat | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Diaphragm
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.49914
Long Description
Diaphragm Valve; 3/8" Male Face Seal | 3/8" Female Face Seal Port; 2 Port | 2 Way; 2 Position; Pneumatic; Air Pilot | Air Pilot Return; 247 PSI; 14 To 160 Deg F; Stainless Steel
Overall Width
1.461 Inch | 37.1 Millimeter
Overall Length
3.858 Inch | 98 Millimeter
Overall Height
3.169 Inch | 80.5 Millimeter
