SGC321B-1620Y-5DZ https://www.bdiexpress.com/medias/INDSMCVALVEX-SGC221A-D-300x300.jpg?context=bWFzdGVyfHJvb3R8MTU0MTV8aW1hZ2UvanBlZ3xhR0UwTDJnM1lTOHhNRFl3TlRRd05ETTRPVFF3Tmk5SlRrUlRUVU5XUVV4V1JWaGZVMGRETWpJeFFWOUVYek13TUhnek1EQXVhbkJufDEyMjQyNmZhMGZlNmZmODA2YzdlYTQxYjg4YmIwNGE0ZGI1NWU0Njg2YjhlNDEyZDJhNmMxMDc5NjhmMzhmZjk
Back to search results
25697865 Hydraulic and Pneumatic Valves

SMC SMC

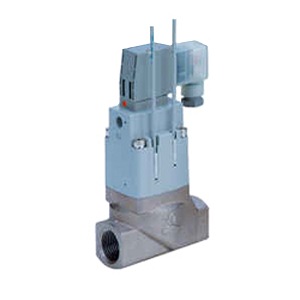

SGC321B-1620Y-5DZ

Description

SGC321B-1620Y-5DZ COOLANT VALVE ; EXTERNAL PILOT

Valve; Solenoid; 3/4" RC Port; 2 Port - 2 Way; 2 Position; Hydraulic; 24 VDC; Solenoid - Air Pilot/Spring Return; 232 PSI; 23 To 140 Deg F; Viton Seal; Cast Iron

Part #

SGC321B-1620Y-5DZ

BDI #
25697865

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
31171504
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Piston | Solenoid
Port Type
3/4" RC
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Spring Return
Voltage
24 VDC
Media
Hydraulic
Maximum Pressure
232 PSI
Operating Pressure Range
0 To 232 PSI
Operating Temperature Range
23 To 140 Deg F
Seal Type
Viton
Body Material
Cast Iron
Inch - Metric
Inch
Other Features
4.5 Cv Factor | Normally Closed
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Piston Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
2.61624
Long Description
Valve; Solenoid; 3/4" RC Port; 2 Port - 2 Way; 2 Position; Hydraulic; 24 VDC; Solenoid - Air Pilot/Spring Return; 232 PSI; 23 To 140 Deg F; Viton Seal; Cast Iron
Overall Length
3.378 Inch | 85.8 Millimeter
Overall Height
6.496 Inch | 165 Millimeter
Overall Width
2.323 Inch | 59 Millimeter
