SY3420-SM-N7 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY3320-M-C6-300x300.jpg?context=bWFzdGVyfHJvb3R8NjA0N3xpbWFnZS9qcGVnfGFEazNMMmd4TXk4eE1EYzNNRFF5T1RjM01UZ3dOaTlKVGtSVFRVTldRVXhXUlZoZlUxa3pNekl3WDAxZlF6WmZNekF3ZURNd01DNXFjR2N8ZmI4ZGJjNjJlMzQyNWM0M2UxMTY4MWZlNTg2MDgxZDQ4NGY2MDQyZmI5MTdlMDQ0ODYwOGNiZWRhMzkyNWVkMA
17865786 Hydraulic and Pneumatic Valves

SMC SMC

SY3420-SM-N7

Description

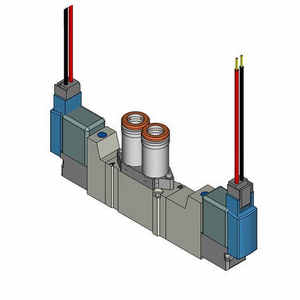

SY3420-SM-N7 ; VALVE DBL SOL BODY PT

Solenoid Valve; 1/4" Tubing OD Port; 5 Port | 4 Way; 3 Position; 5 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc

Part #

SY3420-SM-N7

BDI #
17865786

Details

182.13 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 182.13 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.006
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
5 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
30 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Zinc
Inch - Metric
Inch
Other Features
Air Fluid | Body Ported | Internal Pilot | Non Locking Type Manual Override | M Plug with 300MM Lead Wire | One Touch Fitting | In/Exhaust Center/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.01258
Long Description
Solenoid Valve; 1/4" Tubing OD Port; 5 Port | 4 Way; 3 Position; 5 VDC; Pneumatic; Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc
Overall Length
3.839 Inch | 97.5 Millimeter
Overall Height
1.598 Inch | 40.6 Millimeter
Overall Width
0.457 Inch | 11.6 Millimeter
