SYJ5140-5LZ https://www.bdiexpress.com/medias/INDSMCVALVEX-SYJ5140-00-L-300x300.jpg?context=bWFzdGVyfHJvb3R8MTYwMjR8aW1hZ2UvanBlZ3xhRFl5TDJoak1pOHhNRFl3TmpFek5UQXhOelV3TWk5SlRrUlRUVU5XUVV4V1JWaGZVMWxLTlRFME1GOHdNRjlNWHpNd01IZ3pNREF1YW5CbnwwY2ZhM2YyOWE4YjE2MjFhNTBkZDk5YWNiNzllMTAxNGFjNDBhYzA2OTJkMDM5NzQ4MDFiNmY3YWNlODJiMWE1
Back to search results
17869165 Hydraulic and Pneumatic Valves

SMC SMC

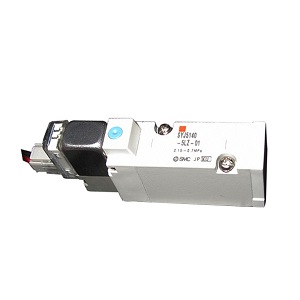

SYJ5140-5LZ

Description

SYJ5140-5LZ

Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Air Pilot - Spring | Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SYJ5140-5LZ

BDI #
17869165

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

78.67 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 78.67 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.066
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Air Pilot - Spring | Solenoid - Air Pilot Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
Air Fluid | Base Mounted | Individual Pilot Exhaust | L Plug with 300MM Lead Wire | With Light/Surge Voltage Suppressor | Non Locking Push Type Manual Override | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.14599
Long Description
Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Air Pilot - Spring | Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Width
0.591 Inch | 15 Millimeter
Overall Length
2.874 Inch | 73 Millimeter
Overall Height
1.126 Inch | 28.6 Millimeter
