VX230GZ3AA https://www.bdiexpress.com/medias/INDSMCVALVEX-VX230GZ3A-DT-WOB-300x300.jpg?context=bWFzdGVyfHJvb3R8NzMyM3xpbWFnZS9qcGVnfGFERmtMMmhsTWk4eE1Ea3dPVGs1TlRZMk16TTVNQzlKVGtSVFRVTldRVXhXUlZoZlZsZ3lNekJIV2pOQlgwUlVYMWRQUWw4ek1EQjRNekF3TG1wd1p3fDFhY2IyMTAxMWQ2ODg2Yjg5NmI2NDdkNDEzYzNhNjdlYWY5MmQ5YjIxYjM2ZDNiZjM2Njk3YTBjYTIwZmQwNjk
25758108 Hydraulic and Pneumatic Valves

SMC SMC

VX230GZ3AA

Description

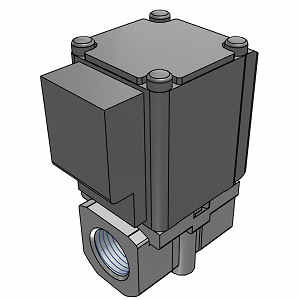

VX230GZ3AA SOLENOID VALVE

Poppet Solenoid Valve; 1/2" G; 2 Port | 2 Way; 2 Position; 24 VDC; Pneumatic; Solenoid | Spring Return; 15 PSI; 14 To 140 Deg F; Buna-N Seal; Aluminum

Part #

VX230GZ3AA

BDI #
25758108

Details

102.3 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 102.30 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/2" G
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
15 PSI
Operating Pressure Range
0 To 15 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2.21 Cv Factor | 10MM Orifice Size | Air Fluid | Normally Closed | Class B | DIN Terminal with Surge Voltage Suppressor | Size 3 | Without DIN Connector
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.102
Long Description
Poppet Solenoid Valve; 1/2" G; 2 Port | 2 Way; 2 Position; 24 VDC; Pneumatic; Solenoid | Spring Return; 15 PSI; 14 To 140 Deg F; Buna-N Seal; Aluminum
Overall Length
2.323 Inch | 59 Millimeter
Overall Width
1.575 Inch | 40 Millimeter
Overall Height
3.406 Inch | 86.5 Millimeter
