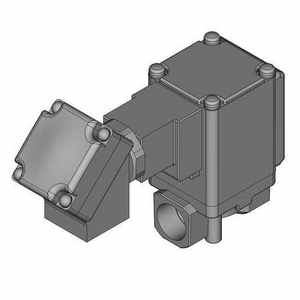

VX232BZ2WB https://www.bdiexpress.com/medias/INDSMCVALVEX-VXN34LP-300x300.jpg?context=bWFzdGVyfHJvb3R8NTgyNnxpbWFnZS9qcGVnfGFEaGhMMmd6TlM4eE1EYzJPVFl3TnpZNE9ESXlNaTlKVGtSVFRVTldRVXhXUlZoZlZsaE9NelJNVUY4ek1EQjRNekF3TG1wd1p3fDhiZGIyYzkzODJlZmU0NDNkY2JjZmYxZmE4YzJiYmUwNTJlM2VjZjYwMGM1MzIzZWM5NzhkMWY2OTI0MzRkYTk
17892630 Hydraulic and Pneumatic Valves

SMC SMC

VX232BZ2WB

Description

VX232BZ2WB ; NC VALVE

Poppet Valve; 1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24 VAC; Hydraulic; Solenoid | Spring Return; 45 PSI; 34 To 140 Deg F; Buna-N Seal; Brass

Part #

VX232BZ2WB

BDI #
17892630

Details

143.17 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 143.17 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.701
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VAC
Media
Hydraulic
Maximum Pressure
45 PSI
Operating Pressure Range
0 To 45 PSI
Operating Temperature Range
34 To 140 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
1.58 Cv Factor | 8MM Orifice Size | Water Fluid | Normally Closed | Class B | Conduit Terminal | With Light/Surge Voltage Suppressor | Size 3 | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.54323
Long Description
Poppet Valve; 1/4" FNPT Port; 2 Port | 2 Way; 2 Position; 24 VAC; Hydraulic; Solenoid | Spring Return; 45 PSI; 34 To 140 Deg F; Buna-N Seal; Brass
Overall Length
5.079 Inch | 129 Millimeter
Overall Width
1.575 Inch | 40 Millimeter
Overall Height
3.701 Inch | 94 Millimeter
