Back to search results
17893965 Hydraulic and Pneumatic Valves

SMC SMC

VXA2240M-03N-1-B

Description

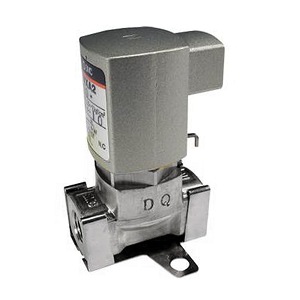

VXA2240M-03N-1-B

Poppet Valve; 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; Pneumatic; Air Pilot | Spring Return; 87 PSI; 23 To 104 Deg F; Viton Seal; Stainless Steel

Part #

VXA2240M-03N-1-B

BDI #
17893965

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141641
Weight / Kilogram
0.27
Product Group - BDI
F02352
Valve Type
Poppet
Port Type
3/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Air Pilot | Spring Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
87 PSI
Operating Pressure Range
0 To 87 PSI
Operating Temperature Range
23 To 104 Deg F
Seal Type
Viton
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
1.1 Cv Factor | 6MM Orifice Size | Medium Vacuum Fluid | Normally Closed | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Poppet
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.59355
Long Description
Poppet Valve; 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; Pneumatic; Air Pilot | Spring Return; 87 PSI; 23 To 104 Deg F; Viton Seal; Stainless Steel
Overall Length
1.791 Inch | 45.5 Millimeter
Overall Height
2.815 Inch | 71.5 Millimeter
Overall Width
2.205 Inch | 56 Millimeter
