DWYER INSTRUMENTS
DWYER INSTRUMENTS
FS-2 VANE FLOW SWITCH
DWYER INSTRUMENTS DWYER INSTRUMENTS
描述

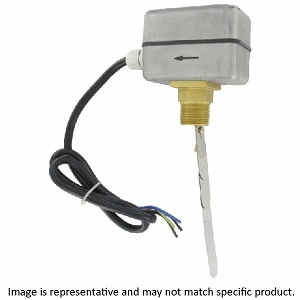

DWYER INSTRUMENTS FS-2 VANE FLOW SWITCH
Paddle Flow Switch; Compliance CE; Enclosure Ratings; IP64 | NEMA Type 4; Materials Aluminum; Measurement Pressure Type Gauge; Media Compatibility Alcohols | Compatible Liquids | Oils | Water; Mounting Orientation Vertical; Operating Temperature Max 230 Deg F; Pipe Size Max 8 in; Pipe Size Min 1 in; Process Connection Size 1 in MNPT; Proof Pressure Up to 145 PSI; Sensor Material Stainless Steel | Brass | Bronze; Set Point Adjustment Vane adjustments | Screw Adjustment; Switch Rating 10 A | 3 A At 250 Vac; Switch Rating Note 10 A RES | 3 A IND At 250 VAC; Switch Type SPDT Snap; Height 3.6"; Width 6.3"; Length 8.5"
制造商部件号
FS-2 VANE FLOW SWITCH
BDI部件号
24855897
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E4%B8%80%E8%88%AC%E5%B7%A5%E4%B8%9A%E4%BA%A7%E5%93%81/FS-2-VANE-FLOW-SWITCH/p/24855897
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
重量 / Kilogram
0.39
Product Group - BDI
G00360
名称
Switch
关键字串
Paddle Flow
重量/磅
1.9
产品明细
Paddle Flow Switch
产品规格
Compliance CE; Enclosure Ratings; IP64 | NEMA Type 4; Materials Aluminum; Measurement Pressure Type Gauge; Media Compatibility Alcohols | Compatible Liquids | Oils | Water; Mounting Orientation Vertical; Operating Temperature Max 230 Deg F; Pipe Size Max 8 in; Pipe Size Min 1 in; Process Connection Size 1 in MNPT; Proof Pressure Up to 145 PSI; Sensor Material Stainless Steel | Brass | Bronze; Set Point Adjustment Vane adjustments | Screw Adjustment; Switch Rating 10 A | 3 A At 250 Vac; Switch Rating Note 10 A RES | 3 A IND At 250 VAC; Switch Type SPDT Snap; Height 3.6"; Width 6.3"; Length 8.5"
详细描述
Paddle Flow Switch; Compliance CE; Enclosure Ratings; IP64 | NEMA Type 4; Materials Aluminum; Measurement Pressure Type Gauge; Media Compatibility Alcohols | Compatible Liquids | Oils | Water; Mounting Orientation Vertical; Operating Temperature Max 230 Deg F; Pipe Size Max 8 in; Pipe Size Min 1 in; Process Connection Size 1 in MNPT; Proof Pressure Up to 145 PSI; Sensor Material Stainless Steel | Brass | Bronze; Set Point Adjustment Vane adjustments | Screw Adjustment; Switch Rating 10 A | 3 A At 250 Vac; Switch Rating Note 10 A RES | 3 A IND At 250 VAC; Switch Type SPDT Snap; Height 3.6"; Width 6.3"; Length 8.5"
