Back to search results
165403 Inline Shafts

BOSTON GEAR BOSTON GEAR

F621B-4-B9

Description

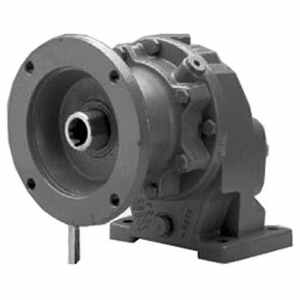

F621B-4-B9 HELICAL GEAR SPEED REDUCER ; NON-RETURNABLE

Speed Reducer; Inline Type; 4:1 Nominal Ratio; 182TC/184TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; 600 Series; Base Mounted; 1-1/8" Input Shaft Diameter; Cast Iron; 416In-Lbs Output Torque

Part #

F621B-4-B9

BDI #
165403

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Inline Shafts
Brand
BOSTON GEAR
Manufacturer Name
REGAL REXNORD
Minimum Buy Quantity
N/A
UNSPSC
26111538
Weight / Kilogram
13.609
EAN
0781711280942
Product Group - BDI
M02282
Tradename
0
Reducer Type
Inline
Nominal Ratio
4:1
Mounting Frame
182TC/184TC
Input Type
C-Face Quill
Output Type
Shaft
Motor Included
No
Nominal Max Input Rating
3HP
Nominal Max Output RPM
437.5
Mounting Method
Base Mounted
Gearing
Helical
Manufacturer's Series
600
Mounting Position
Floor
Mounting Bolt Pattern footprint
Rectangle
Maximum Overhung load value And um
334Lbs
Base Included
Yes
Input Rating value plus um
3.19HP
Housing Material And Finish
Cast Iron
Output RPM at 1750 RPM Input
438
Output Torque value plus um
416In-Lbs
Fan Cooling
No
Other Features
Single Reduction | No Lubricant
Inch - Metric
Inch
Category - BDI
Reducers Inline Shaft
Harmonized Tariff Code
8483.40.70.00
Noun
Reducer
Keyword String
Speed Inline
Manufacturer URL
https://www.bostongear.com
Manufacturer Item Number
F621B-4-B9
Manufacturer Internal Number
28094
Weight / LBS
30
Long Description
Speed Reducer; Inline Type; 4:1 Nominal Ratio; 182TC/184TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; 600 Series; Base Mounted; 1-1/8" Input Shaft Diameter; Cast Iron; 416In-Lbs Output Torque
Base to Center of Output Shaft
3.15 Inch | 80.01 Millimeter
Overall Height
9.48 Inch | 240.792 Millimeter
Base to Center of Input Shaft
4.98 Inch | 126.492 Millimeter
Bolt Hole Diameter
0.43 Inch | 10.922 Millimeter
Input Shaft Diameter
1.125 Inch | 28.575 Millimeter
Output Shaft Diameter
0.75 Inch | 19.05 Millimeter
Overall Width
9 Inch | 228.6 Millimeter
Overall Length
12.15 Inch | 308.61 Millimeter
Output Shaft Length
1.5 Inch | 38.1 Millimeter
