Back to search results
350921 Right Angle Shafts

MORSE INDUSTRIAL MORSE INDUSTRIAL

325Q140LR30

Description

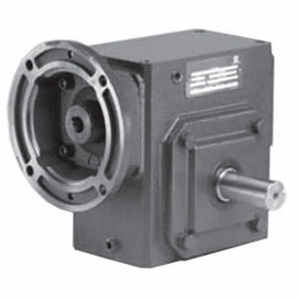

325Q140LR30 WORM GEAR REDUCER ; NON-RETURNABLE Q 100-325

Speed Reducer; Right Angle; 30:1 Ratio; 143TC/145TC; C-Face Quill Input Type; Right and Left Hand Output Type; Direct Mounted; Worm; Q Series; 7/8" Input Shaft Diameter

Part #

XI1177

BDI #
350921

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

4517.58 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 4,517.58 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
MORSE INDUSTRIAL
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26111537
Weight / Kilogram
34.019
EAN
0662288362203
Product Group - BDI
M02282
Tradename
RAIDER PLUS
Reducer Type
Right Angle
Nominal Ratio
30:1
Mounting Frame
143TC/145TC
Input Type
C-Face Quill
Output Type
Right and Left Hand
Motor Included
No
Nominal Max Input Rating
3HP
Nominal Max Output RPM
58.3
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
58.3
Gearing
Worm
Manufacturer's Series
Q
Mounting Position
Floor
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
2401Lbs
Base Included
No
Input Rating value plus um
3.14HP
Housing Material And Finish
Rugged Cast Iron
Output Torque
2777In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Single Piece Construction | Heavy Duty Tapered Roller Bearing on Output Shaft | Double Lip Seal
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
325Q140LR30
Manufacturer Internal Number
XI1177
Weight / LBS
87
Long Description
Speed Reducer; Right Angle; 30:1 Ratio; 143TC/145TC; C-Face Quill Input Type; Right and Left Hand Output Type; Direct Mounted; Worm; Q Series; 7/8" Input Shaft Diameter
Output Shaft Length
3.25 Inch | 82.55 Millimeter
Bolt Hole Diameter
0.438 Inch | 11.125 Millimeter
Overall Length
11.06 Inch | 280.924 Millimeter
Center Distance
3.25 Inch | 82.55 Millimeter
Overall Height
10 Inch | 254 Millimeter
Input Shaft Diameter
0.875 Inch | 22.225 Millimeter
Base to Center of Output Shaft
3.5 Inch | 88.9 Millimeter
Output Shaft Diameter
1.375 Inch | 34.925 Millimeter
Overall Width
14.12 Inch | 358.648 Millimeter
Base to Center of Input Shaft
6.75 Inch | 171.45 Millimeter
Nominal Center Distance
3.25 Inch | 82.55 Millimeter
