Back to search results
476701 Right Angle Shafts

HUB CITY HUB CITY

950 6.5/1 STD SP 3.438

Description

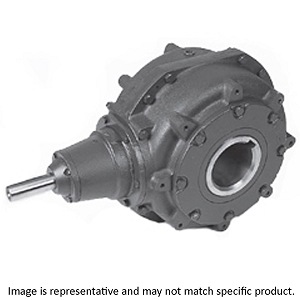

950 6.5/1 STD SP 3.438 BEVEL GEAR DRIVE ; POR NON-RETURNABLE

Speed Reducer; Right Angle; 7:1 Ratio; Shaft Input Type; Hollow Shaft Output Type; Direct Mounted; Spiral Bevel; 950 Series; 1-3/8" Input Shaft Diameter

Part #

950 6.5/1 STD SP 3.438

BDI #
476701

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
HUB CITY
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26111542
Weight / Kilogram
154.36
EAN
0662798007922
Product Group - BDI
M02282
Tradename
HUB CITY
Reducer Type
Right Angle
Nominal Ratio
7:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Hollow Shaft
Motor Included
No
Nominal Max Input Rating
100HP
Nominal Max Output RPM
250
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
0
Gearing
Spiral Bevel
Manufacturer's Series
950
Mounting Position
Floor
Maximum Overhung load value And um
426Lbs
Base Included
No
Input Rating value plus um
104HP
Housing Material And Finish
Rugged Cast Iron
Output Torque
24346In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Heavy Duty Industrial Seal | Tapered Roller Bearing
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Spiral Bevel
Manufacturer URL
https://www.regalrexnord.com
Long Description
Speed Reducer; Right Angle; 7:1 Ratio; Shaft Input Type; Hollow Shaft Output Type; Direct Mounted; Spiral Bevel; 950 Series; 1-3/8" Input Shaft Diameter
Input Shaft Diameter
1.375 Inch | 34.925 Millimeter
Nominal Center Distance
0 Inch | 0 Millimeter
Bolt Hole Diameter
0.5 Inch | 12.7 Millimeter
Overall Width
11.5 Inch | 292.1 Millimeter
Output Bore
3.438 Inch | 87.325 Millimeter
Input Shaft Length
3.844 Inch | 97.638 Millimeter
Overall Length
27.531 Inch | 699.287 Millimeter
Overall Height
16 Inch | 406.4 Millimeter
