Back to search results
475835 Right Angle Shafts

HUB CITY HUB CITY

AL454 46/1 C 56C

Description

NOT AVAILABLE IN US

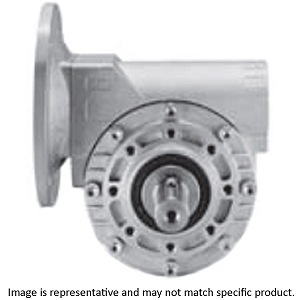

Speed Reducer; Right Angle; 45:1 Ratio; 56C; C-Face Quill Input Type; Right Hand Output Type; Direct Mounted; Worm; AL450 Series; 5/8" Input Shaft Diameter

Part #

0270-00197

BDI #
475835

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Request A Price USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
HUB CITY
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26111537
Weight / Kilogram
3.175
EAN
0662961821201
Product Group - BDI
M02282
Tradename
SPARTAN
Reducer Type
Right Angle
Nominal Ratio
45:1
Mounting Frame
56C
Input Type
C-Face Quill
Output Type
Right Hand
Motor Included
No
Nominal Max Input Rating
0.33HP
Nominal Max Output RPM
38.9
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
38
Gearing
Worm
Manufacturer's Series
AL450
Mounting Position
Floor | Wall
Maximum Overhung load value And um
43Lbs
Base Included
No
Input Rating value plus um
0.397HP
Housing Material And Finish
Aluminum Alloy
Output Torque
388In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Other Mount Flange Mounted | Single Piece Construction | Alloy Shaft
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://www.regalrexnord.com
Long Description
Speed Reducer; Right Angle; 45:1 Ratio; 56C; C-Face Quill Input Type; Right Hand Output Type; Direct Mounted; Worm; AL450 Series; 5/8" Input Shaft Diameter
Overall Length
5.49 Inch | 139.446 Millimeter
Overall Width
6.5 Inch | 165.1 Millimeter
Nominal Center Distance
1.75 Inch | 44.45 Millimeter
Output Shaft Length
1.51 Inch | 38.354 Millimeter
Overall Height
6.95 Inch | 176.53 Millimeter
Bolt Hole Diameter
0.236 Inch | 6 Millimeter
Input Shaft Diameter
0.625 Inch | 15.875 Millimeter
Base to Center of Input Shaft
3.7 Inch | 93.98 Millimeter
Output Shaft Diameter
0.75 Inch | 19.05 Millimeter
Center Distance
1.77 Inch | 44.958 Millimeter
Base to Center of Output Shaft
1.93 Inch | 49.022 Millimeter
