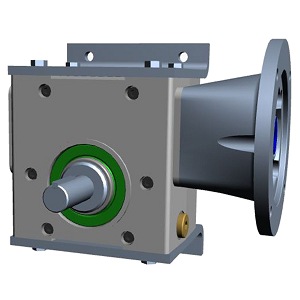

B041125.LAQTD https://www.bdiexpress.com/medias/INDCNDSPDRED-RA-B-LAQTD-300x300.jpg?context=bWFzdGVyfHJvb3R8MTY3Njd8aW1hZ2UvanBlZ3xhR1ZsTDJnek5DOHhNREV4TURJMU56RXpOVFkwTmk5SlRrUkRUa1JUVUVSU1JVUmZVa0ZmUWw5TVFWRlVSRjh6TURCNE16QXdMbXB3Wnd8YjhkY2YyNDIyOTcwODBhNmJiZDllMWMyMGYyZTQxMTcxYWRmMjc1YjcwMzI5YjgwMjA3ZWUyNjc2MTY0ODhlMg
Back to search results
24200788 Right Angle Shafts

CONE DRIVE CONE DRIVE

B041125.LAQTD

Description

B041125.LAQTD WORM GEAR REDUCER ; NON-RETURNABLE RIGHT ANGLE SGL REDUCTION

Speed Reducer; Right Angle; 25:1 Ratio; 56C; C-Face Quill Input Type; Up Shaft Output Type; Direct Mounted; Worm; B Series; 0.63" Input Shaft Diameter

Part #

B041125.LAQTD--

BDI #
24200788

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1063.99 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,063.99 / each
$ 1,064.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
CONE DRIVE
Manufacturer Name
TIMKEN CONEDRIVE.COM
Minimum Buy Quantity
N/A
UNSPSC
26111537
Weight / Kilogram
10.745
EAN
0759170274024
Product Group - BDI
M02282
Tradename
ACCUDRIVE
Reducer Type
Right Angle
Nominal Ratio
25:1
Mounting Frame
56C
Input Type
C-Face Quill
Output Type
Up Shaft
Motor Included
No
Nominal Max Input Rating
1.5HP
Nominal Max Output RPM
70
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
70
Gearing
Worm
Manufacturer's Series
B
Mounting Position
Universal
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
710Lbs
Base Included
Yes
Input Rating value plus um
1.51HP
Housing Material And Finish
Aluminum
Output Torque
726In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Unit With Vertical Base-Low | Unit to Allow Fitting Of NEMA Motor | Other Mount Vertical Base Mounted | Economical | Flexible | Compact | 75 Percentage Efficiency | IP55 Ingress Protection
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://conedrive.com
Weight / LBS
18
Long Description
Speed Reducer; Right Angle; 25:1 Ratio; 56C; C-Face Quill Input Type; Up Shaft Output Type; Direct Mounted; Worm; B Series; 0.63" Input Shaft Diameter
Nominal Center Distance
1.75 Inch | 44.45 Millimeter
Input Shaft Diameter
0.63 Inch | 16 Millimeter
Overall Length
9.33 Inch | 236.982 Millimeter
Output Shaft Length
1.97 Inch | 50.038 Millimeter
Center Distance
1.75 Inch | 44.45 Millimeter
Bolt Hole Diameter
0.406 Inch | 10.312 Millimeter
Overall Width
8.44 Inch | 214.376 Millimeter
Overall Height
7.56 Inch | 192.024 Millimeter
Base to Center of Input Shaft
3 Inch | 76.2 Millimeter
Output Shaft Diameter
0.875 Inch | 22.225 Millimeter
