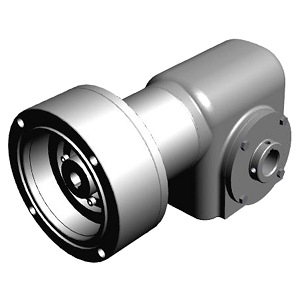

F0500250DWGT03 https://www.bdiexpress.com/medias/INDCNDSPDRED-RA-F-050-DW-T-300x300.jpg?context=bWFzdGVyfHJvb3R8MTYxMTN8aW1hZ2UvanBlZ3xhRGRtTDJnellpOHhNREV4TURRME9EVTVPVEEzTUM5SlRrUkRUa1JUVUVSU1JVUmZVa0ZmUmw4d05UQmZSRmRmVkY4ek1EQjRNekF3TG1wd1p3fDViZDU2NTNlYzg5MjVhNDU5NWIxMjJlMzU5ZjZkODBkYjI2YWEzNTEzYTdkYjVmZGE3N2RkY2Y0Y2VlODc0ZTM
Back to search results
24195390 Right Angle Shafts

CONE DRIVE CONE DRIVE

F0500250DWGT03

Description

F0500250DWGT03 WORM GEAR REDUCER ; NON-RETURNABLE SS DOUBLE REDUCTION

Speed Reducer; Right Angle; 250:1 Ratio; 56C; C-Face Quill Input Type; Hollow Shaft Output Type; Direct Mounted; Worm; F Series; 0.63" Input Shaft Diameter

Part #

F0500250DWGT03-

BDI #
24195390

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

5646.46 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 5,646.46 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
CONE DRIVE
Manufacturer Name
TIMKEN CONEDRIVE.COM
Minimum Buy Quantity
N/A
UNSPSC
26111537
Weight / Kilogram
25.773
EAN
0766234545006
Product Group - BDI
M02282
Tradename
ACCUDRIVE
Reducer Type
Right Angle
Nominal Ratio
250:1
Mounting Frame
56C
Input Type
C-Face Quill
Output Type
Hollow Shaft
Motor Included
No
Nominal Max Input Rating
0.25HP
Nominal Max Output RPM
7
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
7
Gearing
Worm
Manufacturer's Series
F
Mounting Position
Universal
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
950Lbs
Base Included
No
Input Rating value plus um
0.27HP
Housing Material And Finish
Stainless Steel
Output Torque
1730In-Lbs
Fan Cooling
No
Other Features
Double Reduction | Unit to Allow Fitting of Motor with Planetary | Standard Unit | 71 Percentage Efficiency | IP69K Ingress Protection | -22 To 200 Degree F Operating Temperature
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://conedrive.com
Weight / LBS
33
Long Description
Speed Reducer; Right Angle; 250:1 Ratio; 56C; C-Face Quill Input Type; Hollow Shaft Output Type; Direct Mounted; Worm; F Series; 0.63" Input Shaft Diameter
Overall Height
7.5 Inch | 190.5 Millimeter
Bolt Hole Diameter
0.394 Inch | 10 Millimeter
Nominal Center Distance
1.97 Inch | 50.038 Millimeter
Base to Center of Output Shaft
2.28 Inch | 57.912 Millimeter
Overall Width
6.5 Inch | 165.1 Millimeter
Center Distance
1.97 Inch | 50.038 Millimeter
Overall Length
12.27 Inch | 311.658 Millimeter
Input Shaft Diameter
0.63 Inch | 16 Millimeter
Base to Center of Input Shaft
4.25 Inch | 107.95 Millimeter
Output Bore
1.188 Inch | 30.175 Millimeter
