QCWC760-900E-B7-G https://www.bdiexpress.com/medias/INDB-GSPDRED-QC700-RA-RCPG-LD-DM-M-300x300.jpg?context=bWFzdGVyfHJvb3R8MTYxMjh8aW1hZ2UvanBlZ3xhR1V5TDJnMU55ODVNekUxTURrM01qUTNOemMwTG1wd1p3fGFkZDRhOWQ5NTFkNDc3YjA0NzAzMzAzNTVkNmFiNGZlY2UxNGM4OThiNWVlMDY0NDNmMmFlNWQ1NDgyZmY4NmM
Back to search results
179934 Right Angle Shafts

BOSTON GEAR BOSTON GEAR

QCWC760-900E-B7-G

Description

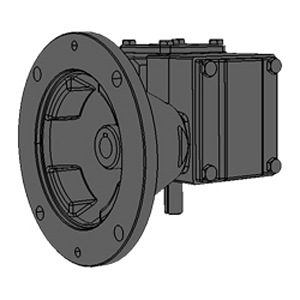

QCWC760-900E-B7-G WORM SPEED REDUCER ; NON-RETURNABLE

Speed Reducer; Right Angle; 900:1 Ratio; 143TC/145TC; Right C-Face Coupling Input Type; Down Shaft Output Type; Direct Mounted; Worm; QC700 Series; 7/8" Input Shaft Diameter

Part #

89151

BDI #
179934

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

12935.77 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 12,935.77 / each
$ 12,936.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
BOSTON GEAR
Manufacturer Name
REGAL REXNORD
Minimum Buy Quantity
N/A
UNSPSC
26111537
Weight / Kilogram
154.72
EAN
0781711891513
Product Group - BDI
M02282
Reducer Type
Right Angle
Nominal Ratio
900:1
Mounting Frame
143TC/145TC
Input Type
Right C-Face Coupling
Output Type
Down Shaft
Motor Included
No
Nominal Max Input Rating
1HP
Nominal Max Output RPM
1.9
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
1.9
Gearing
Worm
Manufacturer's Series
QC700
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
2400Lbs
Base Included
No
Input Rating value plus um
1HP
Housing Material And Finish
Rugged Fine Grained Cast Iron
Output Torque
19000In-Lbs
Fan Cooling
No
Other Features
Double Reduction | No Lubricant
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://www.bostongear.com
Manufacturer Item Number
QCWC760900B7G
Manufacturer Internal Number
89151
Weight / LBS
340
Long Description
Speed Reducer; Right Angle; 900:1 Ratio; 143TC/145TC; Right C-Face Coupling Input Type; Down Shaft Output Type; Direct Mounted; Worm; QC700 Series; 7/8" Input Shaft Diameter
Output Shaft Length
4.56 Inch | 115.824 Millimeter
Input Shaft Length
2.31 Inch | 58.674 Millimeter
Base to Center of Input Shaft
12.5 Inch | 317.5 Millimeter
Bolt Hole Diameter
0.625 Inch | 15.875 Millimeter
Output Shaft Diameter
2.25 Inch | 57.15 Millimeter
Overall Width
16.56 Inch | 420.624 Millimeter
Base to Center of Output Shaft
6.5 Inch | 165.1 Millimeter
Overall Height
21.2 Inch | 538.48 Millimeter
Nominal Center Distance
6 Inch | 152.4 Millimeter
Center Distance
6 Inch | 152.4 Millimeter
Overall Length
20.81 Inch | 528.574 Millimeter
Input Shaft Diameter
0.875 Inch | 22.225 Millimeter
