2 1/2 HG EB SSFR FB https://www.bdiexpress.com/medias/INDRGLXXXXXX-HG-EB-SSFR-FB-300x300.jpg?context=bWFzdGVyfHJvb3R8MTY0NDB8aW1hZ2UvanBlZ3xhREJsTDJnMFl5OHhNRFUyTVRJd01qWTRNemt6TkM5SlRrUlNSMHhZV0ZoWVdGaGZTRWRmUlVKZlUxTkdVbDlHUWw4ek1EQjRNekF3TG1wd1p3fGYyY2Y0YzE3MTljMmMwZDM1ZTYwZWNmODU2OWJkNWYzZjdlZGYwMTU2ZTA5MTg3NDMxNzg3OGY4MWE3MGE3NTY
27815209 齿型联轴器

KOP-FLEX COUPLINGS KOP-FLEX COUPLINGS

2 1/2 HG EB SSFR FB

描述

KOP-FLEX COUPLINGS 2 1/2 HG EB SSFR FB

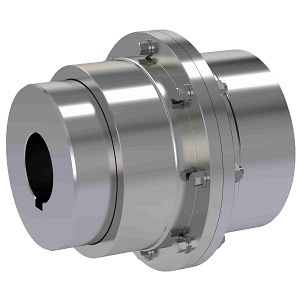

Gear Coupling; 4.38" Maximum Bore Size; 8.38" Outside Diameter; 5.14" Hub Diameter; Gear Coupling; 3.03" Length Through Bore; 7.13" Bolt Circle; 111.13MM Maximum Bore Size; 1.25" Minimum Compatible Bore Size Flex Hub; 1.25" Minimum Compatible Bore Size Rigid Hub; 1.25" Minimum Compatible Bore Size; 19.304MM Distance Between Shaft Ends; 6.68" Overall Length; Exposed Bolt Bolt Type; Flex Rigid Configuration; 2.5 Coupling Size or Series; Carbon Steel Material; Series H PLUS Model Name; Flanged Sleeve Type; 3300 RPM Maximum Speed; 66150 In-Lb Torque Rating; Finish Bore Bore Type; 104.96 HP Rating; Crown Faced, Involute Tooth Profile; Includes Hub, Rigid, Sleeve and Fastener

制造商部件号

2 1/2 HG EB SSFR FB

BDI部件号
27815209

详情

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability 单价(不含税) 请求报价 BDIExpress
订购量

库存

BDI-中国：

分类
齿型联轴器
品牌
KOP-FLEX COUPLINGS
制造商名称
REGAL REXNORD https://www.regalrexnord.com
最低订购量
无
EAN条码
0662384008838
重量 / Kilogram
0
Product Group - BDI
M02302
名称
Coupling
关键字串
Gear
制造商货号
HG2297232
产品明细
Gear Coupling
产品规格
4.38" Maximum Bore Size; 8.38" Outside Diameter; 5.14" Hub Diameter; Gear Coupling; 3.03" Length Through Bore; 7.13" Bolt Circle; 111.13MM Maximum Bore Size; 1.25" Minimum Compatible Bore Size Flex Hub; 1.25" Minimum Compatible Bore Size Rigid Hub; 1.25" Minimum Compatible Bore Size; 19.304MM Distance Between Shaft Ends; 6.68" Overall Length; Exposed Bolt Bolt Type; Flex Rigid Configuration; 2.5 Coupling Size or Series; Carbon Steel Material; Series H PLUS Model Name; Flanged Sleeve Type; 3300 RPM Maximum Speed; 66150 In-Lb Torque Rating; Finish Bore Bore Type; 104.96 HP Rating; Crown Faced, Involute Tooth Profile; Includes Hub, Rigid, Sleeve and Fastener
详细描述
Gear Coupling; 4.38" Maximum Bore Size; 8.38" Outside Diameter; 5.14" Hub Diameter; Gear Coupling; 3.03" Length Through Bore; 7.13" Bolt Circle; 111.13MM Maximum Bore Size; 1.25" Minimum Compatible Bore Size Flex Hub; 1.25" Minimum Compatible Bore Size Rigid Hub; 1.25" Minimum Compatible Bore Size; 19.304MM Distance Between Shaft Ends; 6.68" Overall Length; Exposed Bolt Bolt Type; Flex Rigid Configuration; 2.5 Coupling Size or Series; Carbon Steel Material; Series H PLUS Model Name; Flanged Sleeve Type; 3300 RPM Maximum Speed; 66150 In-Lb Torque Rating; Finish Bore Bore Type; 104.96 HP Rating; Crown Faced, Involute Tooth Profile; Includes Hub, Rigid, Sleeve and Fastener
