ASCO VALVE
ASCO VALVE
SV8220G405DC24/DC
ASCO VALVE ASCO VALVE
描述

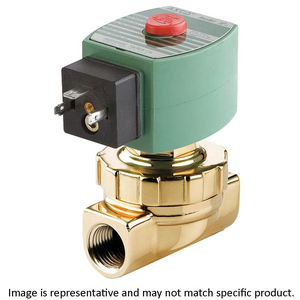

ASCO VALVE SV8220G405DC24/DC
Solenoid Valve; 1/2" FNPT Port; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 100 PSI | Steam 50 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 300 Deg F; EPDM Seal; Brass
制造商部件号
SV8220G405DC24/DC
BDI部件号
20714174
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E6%B6%B2%E5%8E%8B/%E9%98%80%E9%97%A8-%E6%8E%A7%E5%88%B6%E8%A3%85%E7%BD%AE/%E6%B6%B2%E5%8E%8B%E5%92%8C%E6%B0%94%E5%8A%A8%E9%98%80%E9%97%A8/SV8220G405DC24-DC/p/20714174
单价(不含税)
请求报价
BDIExpress
|
|||
| BDI- 美国 | 2 |
产品详细信息
分类
最低订购量
无
重量 / Kilogram
0.005
Product Group - BDI
F02352
阀门类型
Solenoid
接口类型
1/2" FNPT
接口数量/通路数
2 Port | 2 Way
位数
2 Position
驱动方式
Solenoid - Air Pilot | Air Pilot - Spring Return
电压
24 VDC
介质
Hydraulic | Pneumatic
最大压力
Hot Water 100 PSI | Steam 50 PSI
工作压力范围
Hot Water 0 To 100 PSI | Steam 0 To 50 PSI
工作温度范围
Hot Water 32 To 210 Deg F | Steam 32 To 300 Deg F
密封类型
EPDM
阀体材质
Brass
英寸 - 公制
Inch
其它特点
4.7 Cv Factor | 1/2" Orifice Size | Hot Water - Steam Fluid | Class H | Intermediate Power | DIN Connector | In/Out Position
类别 - BDI
Hydraulic and Pneumatic Valve
名称
Valve
关键字串
Solenoid
详细描述
Solenoid Valve; 1/2" FNPT Port; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 100 PSI | Steam 50 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 300 Deg F; EPDM Seal; Brass
总宽
2.246 英寸 | 57.048 毫米
总高
4.108 英寸 | 104.343 毫米
全长
3.15 英寸 | 80 毫米
