BT 1003-13-28 https://www.bdiexpress.com/medias/INDSKFBTUNTX-1003-STD-300x300.jpg?context=bWFzdGVyfHJvb3R8ODQ1NHxpbWFnZS9qcGVnfGFHWXpMMmc0TUM4eE1ESTJNekkxTURFM016azRNaTlKVGtSVFMwWkNWRlZPVkZoZk1UQXdNMTlUVkVSZk16QXdlRE13TUM1cWNHY3w2ZGEwNjFkYmJiMDkwMzMxNzczOGZlOTc3MzQ3NjYyN2NhM2NiNzQ5MWYwM2NiMWQ0MDEyZTliMzhhYTQ5OTcy
Back to search results

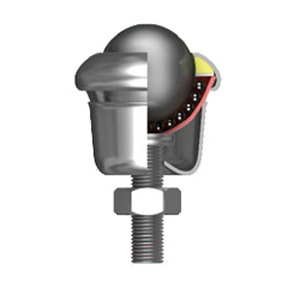

1299876 Ball Transfer Unit

SKF SKF

BT 1003-13-28

Description

SKF BT 1003-13-28

Ball Transfer Unit; Stud; 25.4MM Ball Diameter; Steel Ball; Ball Up 121|Ball Down 55 Lbs Max Load; 39.7MM Base to Ball Height; 39.7MM Housing Diameter; 33.4MM Housing Height; Steel Housing

Part #

BT 1003-13-28

BDI #
1299876

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Ball Transfer Unit
Brand
SKF
Manufacturer Name
SKF
Minimum Buy Quantity
N/A
UNSPSC
24101700
Weight / Kilogram
0.16
Product Group - BDI
M00134
Product Name
Ball Transfer Unit
Fitting Type
Stud
Ball Material
Steel
Maximum Load
Ball Up 121 | Ball Down 55 Lbs
Flange Size if applicable
Not Applicable
Housing Material
Steel
Stud Thread Size
M8
Other Features
Drill Hole Fixing | Optional Alternative Thread Size and Dirt Exit Hole | Zinc Plated Housing
Inch - Metric
Metric
Long Description
Ball Transfer Unit; Stud; 25.4MM Ball Diameter; Steel Ball; Ball Up 121|Ball Down 55 Lbs Max Load; 39.7MM Base to Ball Height; 39.7MM Housing Diameter; 33.4MM Housing Height; Steel Housing
Housing Diameter
1.563 Inch | 39.7 Millimeter
Stud Height if applicable
1.102 Inch | 28 Millimeter
Housing Height
1.315 Inch | 33.4 Millimeter
Stud Thread Length
1.102 Inch | 28 Millimeter
Base to Ball Height
1.563 Inch | 39.7 Millimeter
Ball Outside Diameter
1 Inch | 25.4 Millimeter
Overall Height
2.665 Inch | 67.7 Millimeter
