REXNORD
REXNORD
N1500-7T 3/4IN IDL 2PC KIT
REXNORD REXNORD
描述

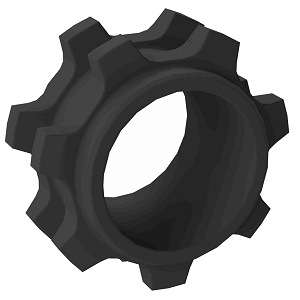

REXNORD N1500-7T 3/4IN IDL 2PC KIT
Conveying Chain Sprocket; 3/4" Bore; 0.591" Pitch; 1503 | 1505 | 1506 Modular - Flat Top Size; 7 Teeth; C-Hub Both Sides Type; Idler Bore; Round; 1.31" Outside Diameter; 1.36" Pitch Diameter; Straight Running Modular - Flat Top Type; Thermoplastic Material; No Grooved; No Split; No Keyway
制造商部件号
N1500-7T 3/4IN IDL 2PC KIT
BDI部件号
19435076
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E7%89%A9%E6%96%99%E6%90%AC%E8%BF%90/%E8%BE%93%E9%80%81%E6%9C%BA%E7%BB%84%E4%BB%B6/%E9%A1%B6%E6%9D%BF%E9%93%BE%E5%92%8C%E7%BD%91%E5%B8%A6%E8%BD%AE/N1500-7T-3-4IN-IDL-2PC-KIT/p/19435076
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
EAN条码
0793699261943
重量 / Kilogram
0.01
Product Group - BDI
M00332
模块 - 平顶尺寸
1503 | 1505 | 1506
齿数
7
轮毂类型
C-Hub Both Sides
安装形式
Idler Bore
钻孔断面
Round
模块 - 平顶类型
Straight Running
材料
Thermoplastic
是否带槽
No
是否剖分
No
是否有键槽
No
英寸 - 公制
Inch
其它特点
1500 Series Molded Non-Split
类别 - BDI
Flat Top Sprockets
名称
Sprocket
关键字串
Conveying Chain
制造商货号
10015530
重量/磅
0.02
详细描述
Conveying Chain Sprocket; 3/4" Bore; 0.591" Pitch; 1503 | 1505 | 1506 Modular - Flat Top Size; 7 Teeth; C-Hub Both Sides Type; Idler Bore; Round; 1.31" Outside Diameter; 1.36" Pitch Diameter; Straight Running Modular - Flat Top Type; Thermoplastic Material; No Grooved; No Split; No Keyway
节距
0.591 英寸 | 15 毫米
外径
1.31 英寸 | 33.274 毫米
孔径
0.75 英寸 | 19.05 毫米
节圆直径
1.36 英寸 | 34.544 毫米
