NS8500-25T-30MM-KWSS https://www.bdiexpress.com/medias/MFRREXMDSPKT-8500-RND-KW-SP-82-300x300.jpg?context=bWFzdGVyfHJvb3R8MTQ4MjN8aW1hZ2UvanBlZ3xhR0kyTDJnMU1pOHhNRGN3TWpVMU56UTBOakUzTkM5TlJsSlNSVmhOUkZOUVMxUmZPRFV3TUY5U1RrUmZTMWRmVTFCZk9ESmZNekF3ZURNd01DNXFjR2N8ZmM4ODg2NDBmNzZhODkwNDY4ODBkNzIzY2I1N2U0ZTljOGNkOWQwZjk5YTFlMTBjMGNjOTIwY2VjNzFlYjlkYg
Back to search results
24115595 Table Top and Modular Sprockets

REXNORD REXNORD

NS8500-25T-30MM-KWSS

Description

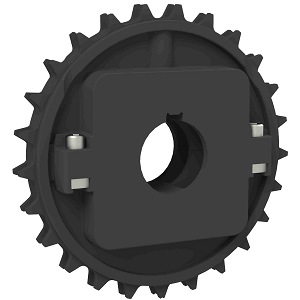

NS8500-25T-30MM-KWSS ; NON-RETURNABLE MOLDED SPLIT SPROCKET

Conveying Chain Sprocket; 30MM Bore; 19.05MM Pitch; 8503 | 8505 | 8506 | 8507 Modular - Flat Top Size; 25 Teeth; C-Hub Both Sides Type; Finished Bore; Round; 6.04MM Outside Diameter; 154.686MM Pitch Diameter; Straight Running | Back Flexing; Thermoplastic Material; Grooved; Split; Keyway

Part #

NS8500-25T-30MM-KWSS

BDI #
24115595

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Table Top and Modular Sprockets
Brand
REXNORD
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
31171903
Weight / Kilogram
0.354
EAN
0782934790256
Product Group - BDI
M00332
Modular - Flat Top Size
8503 | 8505 | 8506 | 8507
Number of Teeth
25
Hub Type
C-Hub Both Sides
Mounting Method
Finished Bore
Bore Profile
Round
Modular - Flat Top Type
Straight Running | Back Flexing
Material
Thermoplastic
Grooved Yes or No
Yes
Split Yes or No
Yes
Keyway Yes/No
Yes
Inch - Metric
Metric
Category - BDI
Flat Top Sprockets
Harmonized Tariff Code
8483.90.10.50
Noun
Sprocket
Keyword String
Conveying Chain
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
0.78
Long Description
Conveying Chain Sprocket; 30MM Bore; 19.05MM Pitch; 8503 | 8505 | 8506 | 8507 Modular - Flat Top Size; 25 Teeth; C-Hub Both Sides Type; Finished Bore; Round; 6.04MM Outside Diameter; 154.686MM Pitch Diameter; Straight Running | Back Flexing; Thermoplastic Material; Grooved; Split; Keyway
Pitch Diameter
6.04 Inch | 153.42 Millimeter
Outside Diameter
6.09 Inch | 154.686 Millimeter
Bore
1.181 Inch | 30 Millimeter
Pitch
0.75 Inch | 19.05 Millimeter
