LEESON
LEESON
FX32FK003
LEESON LEESON
描述
LEESON FX32FK003

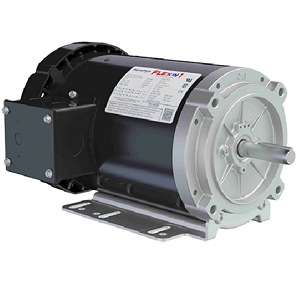

AC Motor; General Purpose; 1-1/2HP; 56HC Frame Size; 1800 Sync RPM; 575 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face | Foot Mounted; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 13.3" Overall Length; 86.5% Efficiency Full Load
制造商部件号
FX32FK003
BDI部件号
27569836
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E7%94%B5%E5%8A%9B%E4%BC%A0%E5%8A%A8/%E7%94%B5%E5%8A%A8%E9%A9%AC%E8%BE%BE/%E4%BA%A4%E6%B5%81%E7%94%B5%E6%9C%BA/FX32FK003/p/27569836
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
EAN条码
0691720115183
重量 / Kilogram
0
Product Group - BDI
M04104
马力
1-1/2HP
外形规格
56HC
赫兹
60
同步RPM
1800
电压
575
电流
AC
相位
Three Phase
外壳
TEFC
外形形式
NEMA
安装形式
C-Face | Foot Mounted
底座
Yes
满负载效率
86.5
英寸 - 公制
Inch
其它特点
FLEX-IN-1 Series
类别 - BDI
AC Motor
名称
Motor
关键字串
Alternating Current General Purpose
制造商货号
056T17F15946
重量/磅
45
详细描述
AC Motor; General Purpose; 1-1/2HP; 56HC Frame Size; 1800 Sync RPM; 575 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face | Foot Mounted; Base; 5/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 13.3" Overall Length; 86.5% Efficiency Full Load
轴直径
0.625 英寸 | 15.875 毫米
全长
13.3 英寸 | 337.82 毫米
底座到轴心
3.5 英寸 | 88.9毫米
