WEG
WEG
HT015502NPW22
WEG WEG
描述
WEG HT015502NPW22

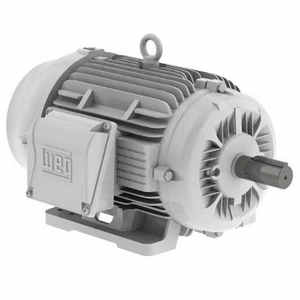

AC Motor; Multi Phase; 15HP; 254T/256T Frame Size; 3600 Sync RPM; 575 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Foot Mounted; Base; 1-5/8" Shaft Diameter; 6-1/4" Base to Center of Shaft; 24.961" Overall Length; 91% Efficiency Full Load
制造商部件号
HT015502NPW22
BDI部件号
22131214
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E7%94%B5%E5%8A%9B%E4%BC%A0%E5%8A%A8/%E7%94%B5%E5%8A%A8%E9%A9%AC%E8%BE%BE/%E4%BA%A4%E6%B5%81%E7%94%B5%E6%9C%BA/HT015502NPW22/p/22131214
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
重量 / Kilogram
0.01
Product Group - BDI
M04104
马力
15HP
外形规格
254T/256T
赫兹
60
同步RPM
3600
电压
575
电流
AC
相位
Three Phase
外壳
TEFC
外形形式
NEMA
安装形式
Foot Mounted
底座
Yes
满负载效率
91
英寸 - 公制
Inch
类别 - BDI
AC Motor
名称
Motor
关键字串
Alternating Current Multi Phase
重量/磅
236
详细描述
AC Motor; Multi Phase; 15HP; 254T/256T Frame Size; 3600 Sync RPM; 575 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Foot Mounted; Base; 1-5/8" Shaft Diameter; 6-1/4" Base to Center of Shaft; 24.961" Overall Length; 91% Efficiency Full Load
轴直径
1.625 英寸 | 41.275 毫米
全长
24.961 英寸 | 634.009 毫米
底座到轴心
6.25 英寸 | 158.75毫米
