Back to search results
22325719 AC Motors

LEESON LEESON

X467 ; 048A17T87

Description

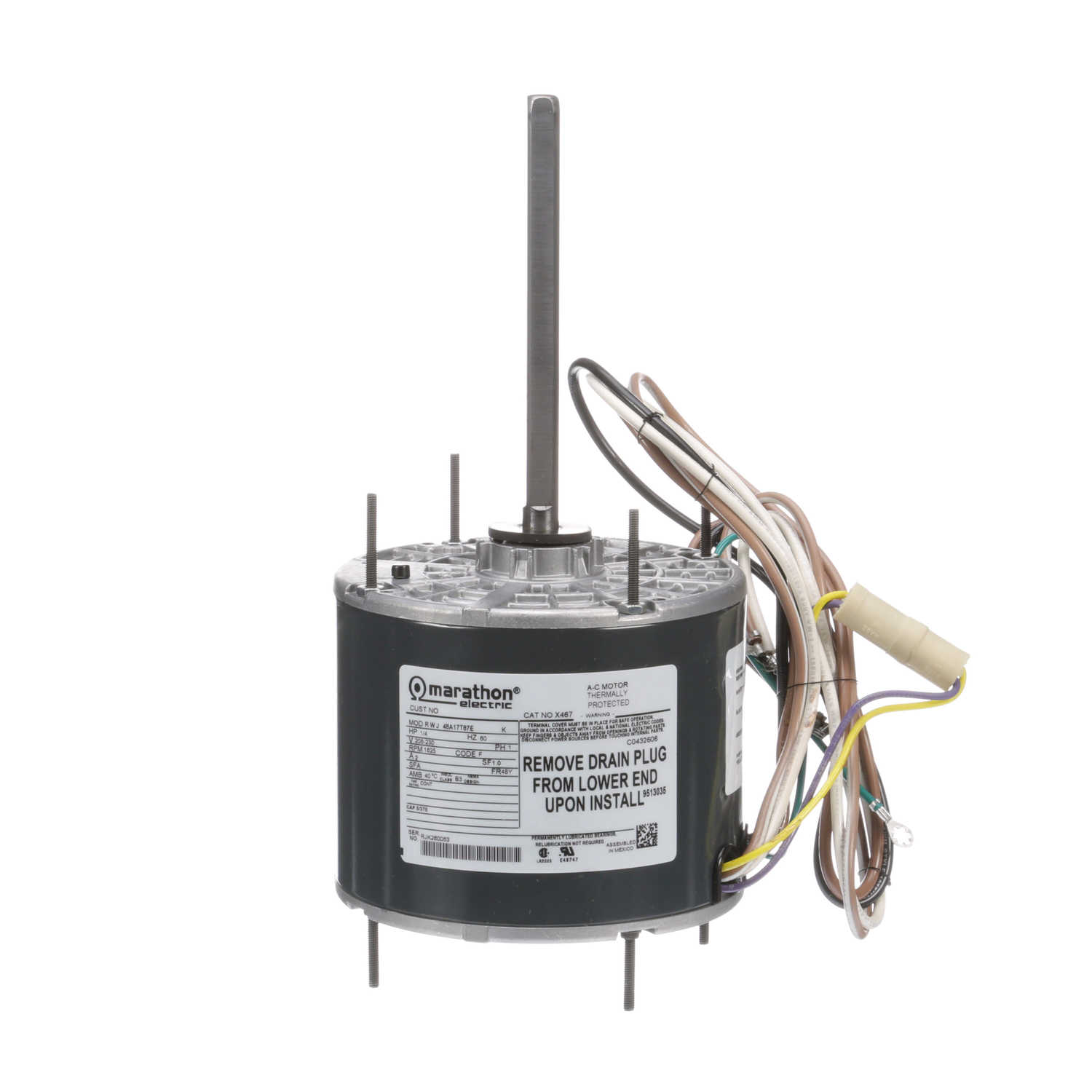

X467 ; 048A17T87 CONDENSER FAN MOTOR ; 1/4HP 1625RPM TENV 48Y 1/60/208-230V

AC Motor; 1/4HP; 48Y Frame Size; 1625 Sync RPM; 208-230 Voltage; AC; TEAO Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; Extended Stud | Round Frame Mounted; 1/2" Shaft Diameter; 4" Overall Length; 66% Efficiency Full Load

Part #

X467

BDI #
22325719

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
LEESON
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
26101112
Weight / Kilogram
5.44
EAN
0722856037985
Product Group - BDI
M04104
Horse Power
1/4HP
Frame Size
48Y
Hertz
60
Sync RPM
1625
Voltage
208-230
Current
AC
Phase
Single Phase
Enclosure
TEAO
Frame Profile
NEMA
Mounting Method
Extended Stud | Round Frame
Base
No
Efficiency Full Load
66
Inch - Metric
Inch
Other Features
Current Rating 2 Ampere | 4 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.40.60.40
Noun
Motor
Keyword String
Alternating Current Permanent Magnet
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
048A17T87
Weight / LBS
12
Long Description
AC Motor; 1/4HP; 48Y Frame Size; 1625 Sync RPM; 208-230 Voltage; AC; TEAO Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; Extended Stud | Round Frame Mounted; 1/2" Shaft Diameter; 4" Overall Length; 66% Efficiency Full Load
Overall Length
4 Inch | 101.6 Millimeter
Shaft Diameter
0.5 Inch | 12.7 Millimeter
