DC Motors
LEESON
LEESON
109082.00
LEESON LEESON
Description

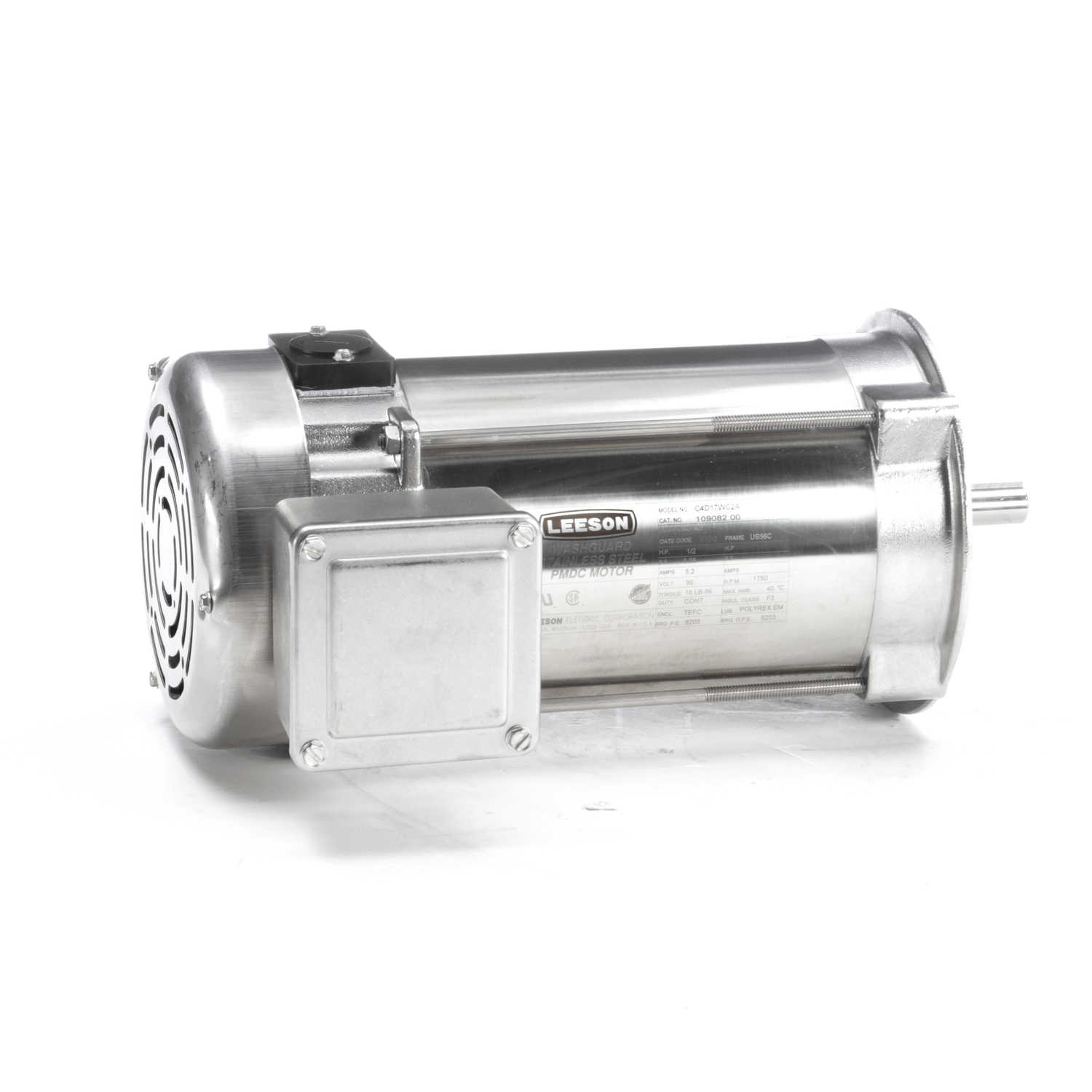

109082.00 WASHDOWN DUTY DC MOTOR ; 1/2HP 1750RPM 40C TEFC
DC Motor; Permanent Magnet; 1/2HP; US56C Frame Size; 1800 Sync RPM; 90 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face; No Base; 5/8" Shaft Diameter; 13.87" Overall Length; 79 Efficiency Full Load
Part #
109082.00
BDI #
20181830
Details
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/rs/en/Categories/Electrical-Power-Transmission/Electric-Motors/DC-Motors/109082-00/p/20181830
Your Price
Request A Price
BDIExpress
|
Specifications
Category
Minimum Buy Quantity
N/A
UNSPSC
26101208
Weight / Kilogram
20.87
EAN
0691720343074
Product Group - BDI
M04104
Horse Power
1/2HP
Frame Size
US56C
Sync RPM
1800
Voltage
90
Current
DC
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
C-Face
Base
No
Efficiency Full Load
79
Inch - Metric
Inch
Other Features
Current Rating 5.2 Ampere | SCR Drive
Category - BDI
DC Motor
Harmonized Tariff Code
8501.33.40.60
Noun
Motor
Keyword String
Direct Current Permanent Magnet
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
46
Long Description
DC Motor; Permanent Magnet; 1/2HP; US56C Frame Size; 1800 Sync RPM; 90 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face; No Base; 5/8" Shaft Diameter; 13.87" Overall Length; 79 Efficiency Full Load
Overall Length
13.87 Inch | 352.298 Millimeter
Shaft Diameter
0.625 Inch | 15.875 Millimeter
