Back to search results
455223 Pneumatic Clutches and Brakes

NEXEN NEXEN

800115

Description

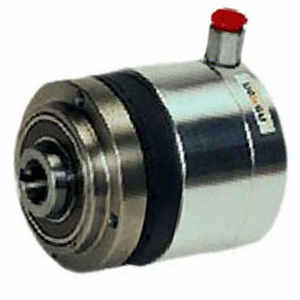

800115 PNEUMATIC CLUTCH ; NON RETURNABLE 0.625 PILOT MOUNT TEF

Clutch; Pneumatic Activation; Straight | Finished Bore; 5/8" Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; 2-1/8" Pilot Diameter; Static Tor

Part #

800115

BDI #
455223

Details

1242.86 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,242.86 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Pneumatic Clutches and Brakes
Brand
NEXEN
Manufacturer Name
NEXEN GROUP INC WWW.NEXENGROUP.COM
Minimum Buy Quantity
N/A
Weight / Kilogram
1.586
EAN
0662284255677
Product Group - BDI
C02104
Product Name
Clutch
Activation
Pneumatic
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Hollow Bore
Mounting Method
Shaft
Torque
Static Torque 9Nm at 6bar
Product Type
Friction Disc | Tension Control
Motion Type
Starting
Actuation/Return
Air | Spring
Tradename
AIR CHAMP
Product Series
BW
Housing Style
Cylindrical
Shaft-Thru/End
Thru
Drive Arrangement
Pilot Mount
Maximum RPM
3600
Pressure
3 to 85psi
Thermal Capacity
0.07HP
Application
Soft Start | Overload Protection
Inch - Metric
Inch
Other Features
Air Cooled | Teflon Clutch Facing | Stainless Steel Finish | Nickel Plated and Anodized Finish | Open Design | Light Duty
Category - BDI
Clutches and Brakes
Harmonized Tariff Code
8483.60.40.40
Noun
Clutch
Keyword String
Pneumatic
Manufacturer URL
http://www.nexengroup.com
Manufacturer Item Number
800115
Weight / LBS
3.5
Long Description
Clutch; Pneumatic Activation; Straight | Finished Bore; 5/8" Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; 2-1/8" Pilot Diameter; Static Tor
Port Size
0.125 Inch | 3.175 Millimeter
Pilot Diameter
2.124 Inch | 53.95 Millimeter
Bore
0.625 Inch | 15.875 Millimeter
