WARNER ELECTRIC
WARNER ELECTRIC
MMCS-40U24-M20
WARNER ELECTRIC WARNER ELECTRIC
描述

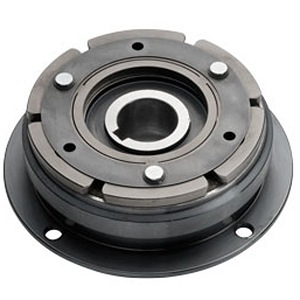

WARNER ELECTRIC MMCS-40U24-M20
Electrical Clutch; Straight | Finished; 20MM Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; 24VDC Voltage; Bidirectional Rotation; Static Torque 22Lb-in
制造商部件号
MMCS-40U24-M20
BDI部件号
846421
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E7%A6%BB%E5%90%88%E5%99%A8%E4%B8%8E%E5%88%B6%E5%8A%A8%E5%99%A8/%E7%94%B5%E5%8A%A8%E7%A6%BB%E5%90%88%E5%99%A8%E5%92%8C%E5%88%B6%E5%8A%A8%E5%99%A8/MMCS-40U24-M20/p/846421
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
EAN条码
0781711060216
重量 / Kilogram
0
Product Group - BDI
C02104
产品名称
Clutch
启动
Electrical
钻孔断面
Straight | Finished
输入类型
Hollow Bore
输出方式
Hollow Bore
安装形式
Shaft
额定电压：
24VDC
旋转方向
Bidirectional
限动环数量
0
扭矩
Static Torque 22Lb-in
产品类型
Friction Facing
移动类型
Starting
启动/返回
Armature
产品系列
MMCS
壳体形状
Cylindrical
贯穿轴/端
Thru
断电状态
Disengagement
额定功率
20W
电阻（欧姆）
29Ohm
最大RPM
5000
引线位置
External
应用
Document Handling | Copiers | Printers | Collators | Sorters | Finishers | ATM Machines | Currency Counters | Material Handling
英寸 - 公制
Metric
其它特点
Unburnished | Zero Backlash | Corrosion Resistance
类别 - BDI
Clutches and Brakes
名称
Clutch
关键字串
Electrical
重量/磅
3.461
详细描述
Electrical Clutch; Straight | Finished; 20MM Bore; Hollow Bore Input; Hollow Bore Output; Shaft Mount; 24VDC Voltage; Bidirectional Rotation; Static Torque 22Lb-in
孔径
0.787 英寸 | 20 毫米
