24024343 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8221G013 120/60V 110/50V

Description

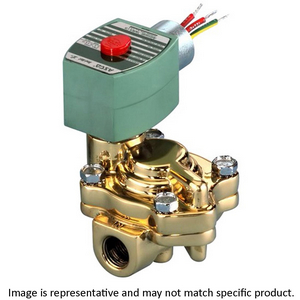

8221G013 120/60V 110/50V SOLENOID VALVE ; NC 2" PIPE SIZE BRASS

Solenoid Valve; 2" FNPT Port; 2 Port - 2 Way; 2 Position; 110/50 VAC - 120/60 VAC; Hydraulic; Solenoid - Air Pilot/Air Pilot - Spring Return; 150 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8221G013 120/60V 110/50V

BDI #
24024343

Details

Request A Price CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
2" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
110/50 VAC | 120/60 VAC
Media
Hydraulic
Maximum Pressure
150 PSI
Operating Pressure Range
5 To 150 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
36 CV Factor | 1 3/4 Inch Orifice Size | Water Fluid | Normally Closed
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 2" FNPT Port; 2 Port - 2 Way; 2 Position; 110/50 VAC - 120/60 VAC; Hydraulic; Solenoid - Air Pilot/Air Pilot - Spring Return; 150 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Width
4.72 Inch | 119.888 Millimeter
Overall Height
7.38 Inch | 187.452 Millimeter
Overall Length
5.06 Inch | 128.524 Millimeter
