25267753 Angular Contact Ball Bearings

NTN NTN

7320BDB

Description

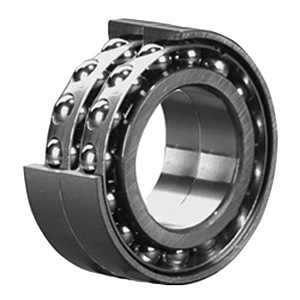

7320BDB DUPLEX ANGULAR CONTACT BRG (SMARTCATALOG)

Angular Contact Ball Bearing; 100MM Bore; 215MM Outside Diameter; 94MM Width; Open; No Flush Ground; Single Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap ring

Part #

7320BDB

BDI #
25267753

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

3604.0318 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 3,604.03 / each
$ 4,250.31 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Angular Contact Ball Bearings
Brand
NTN
Manufacturer Name
NTN
Minimum Buy Quantity
1
UNSPSC
31171531
Weight / Kilogram
14.68
EAN
4547359453386
Product Group - BDI
B00308
Enclosure
Open
Flush Ground
No
Rolling Element
Ball Bearing
Number of Rows of Balls
Single Row
Precision Class
ABEC 1 | ISO P0
Maximum Capacity / Filling Slot
No
Snap Ring
No
Cage Material
Steel
Contact Angle
40 Degree
Internal Clearance
C0-Medium
Number of Bearings
2 (1 Pair)
Mounting Arrangement
Duplex-Back to Back
Inch - Metric
Metric
Category - BDI
Angular Contact Ball Bearing
Harmonized Tariff Code
8482.10.50.28
Noun
Bearing
Keyword String
Angular Contact
Manufacturer URL
https://www.ntnglobal.com
Long Description
Angular Contact Ball Bearing; 100MM Bore; 215MM Outside Diameter; 94MM Width; Open; No Flush Ground; Single Row of Balls; ABEC 1 | ISO P0; No Filling Slot; No Snap ring
Bore
3.937 Inch | 100 Millimeter
Width
3.701 Inch | 94 Millimeter
Outside Diameter
8.465 Inch | 215 Millimeter
