QJ348-N2-MPA-C3 https://www.bdiexpress.com/medias/INDFAGBRGXXX-ACB1-OPEN-BR-QJ3-300x300.jpg?context=bWFzdGVyfHJvb3R8MTY0NjR8aW1hZ2UvanBlZ3xhRE14TDJoa01pOHhNRFV4TnpjNE1UUXhNemt4T0M5SlRrUkdRVWRDVWtkWVdGaGZRVU5DTVY5UFVFVk9YMEpTWDFGS00xOHpNREI0TXpBd0xtcHdad3xlMDhkNDI3MGUwZGQxZTI0Zjk4NWIwNDEzMzM0YjEyOTAyZjhmOTBkNzllY2U4ZTA2NzdmYzhkNGNhMGQ0ZDUw

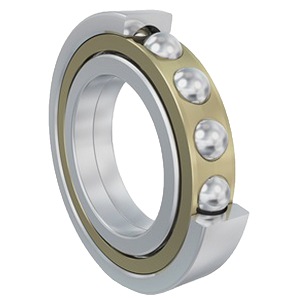

24860638 Angular Contact Ball Bearings

FAG FAG

QJ348-N2-MPA-C3

Description

QJ348-N2-MPA-C3 FOUR POINT CONTACT BRNG ; POR NON RETURNABLE 240MM X 500MM X 95MM

Angular Contact Ball Bearing; 240MM BORE; 500MM Outside Diameter; 95MM Width; Open; No Flush Ground; Single Row of Balls; ABEC 1 | ISO P0 Precision; No Filling Slot; No Snap Ring; C3-Loose Internal Clearance; Brass Cage; 35 Degree | 4 Point; 1 (Single)

Part #

QJ348-N2-MPA-C3

BDI #
24860638

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Request A Price USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Angular Contact Ball Bearings
Brand
FAG
Manufacturer Name
SCHAEFFLER GROUP
Minimum Buy Quantity
N/A
UNSPSC
31171538
Weight / Kilogram
98.2
EAN
4012801624428
Product Group - BDI
B00308
Enclosure
Open
Flush Ground
No
Rolling Element
Ball Bearing
Number of Rows of Balls
Single Row
Precision Class
ABEC 1 | ISO P0
Maximum Capacity / Filling Slot
No
Snap Ring
No
Cage Material
Brass
Contact Angle
35 Degree | 4 Point
Internal Clearance
C3-Loose
Number of Bearings
1 (Single)
Inch - Metric
Metric
Other Features
Split Inner Race | With Two Slots
Category - BDI
Angular Contact Ball Bearing
Harmonized Tariff Code
8482.10.50.28
Noun
Bearing
Keyword String
Angular Contact
Manufacturer URL
https://www.schaeffler.com
Weight / LBS
216.494
Long Description
Angular Contact Ball Bearing; 240MM BORE; 500MM Outside Diameter; 95MM Width; Open; No Flush Ground; Single Row of Balls; ABEC 1 | ISO P0 Precision; No Filling Slot; No Snap Ring; C3-Loose Internal Clearance; Brass Cage; 35 Degree | 4 Point; 1 (Single)
Outside Diameter
19.685 Inch | 500 Millimeter
Bore
9.449 Inch | 240 Millimeter
Width
3.74 Inch | 95 Millimeter
