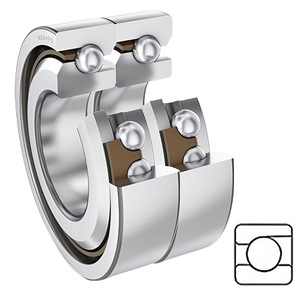

25264149 Precision Ball Bearings

NSK NSK

23TAC62CDUC11PN7C

Description

23TAC62CDUC11PN7C ANGLR CNTCT BALL BRG ; 23.838MM DIA BORE 62MM OD 31.75MM W

Precision Ball Bearing; 23.838MM Bore; 62MM Outside Diameter; 31.75MM Width; Open Enclosure; ABEC 7 | ISO P4 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 60 Degree Contact Angle; Polyamide Cage Material; 2 Rib Inner Ring and 1 Rib Outer Ring Raceway Type; Ball Bearing; Duplex-Universal Mounting Arrangement

Part #

23TAC62CDUC11PN7C

BDI #
25264149

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1163.0039000000002 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,163.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Precision Ball Bearings
Brand
NSK
Manufacturer Name
NSK
Minimum Buy Quantity
N/A
UNSPSC
31171504
Weight / Kilogram
0
EAN
0029176951077
Product Group - BDI
B00308
Enclosure
Open
Precision Class
ABEC 7 | ISO P4
Material - Ball
Steel
Number of Bearings
2 (1 Pair)
Contact Angle
60 Degree
Preload
None
Raceway Style
2 Rib Inner Ring and 1 Rib Outer Ring
Cage Material
Polyamide
Rolling Element
Ball Bearing
Mounting Arrangement
Duplex-Universal
Flush Ground
No
Inch - Metric
Metric
Other Features
Angular Contact Thrust Bearing | Ball Screw Support | High Capacity
Category - BDI
Precision Ball Bearings
Harmonized Tariff Code
8482.10.50.28
Noun
Bearing
Keyword String
Ball Angular Contact
Manufacturer URL
https://www.nsk.com
Weight / LBS
1.19931
Long Description
Precision Ball Bearing; 23.838MM Bore; 62MM Outside Diameter; 31.75MM Width; Open Enclosure; ABEC 7 | ISO P4 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 60 Degree Contact Angle; Polyamide Cage Material; 2 Rib Inner Ring and 1 Rib Outer Ring Raceway Type; Ball Bearing; Duplex-Universal Mounting Arrangement
Width
1.25 Inch | 31.75 Millimeter
Outside Diameter
2.441 Inch | 62 Millimeter
Bore
0.939 Inch | 23.838 Millimeter
