205KLD https://www.bdiexpress.com/medias/INDXXXBRGXXX-SRB-SL-SHLD-STL-300x300.jpg?context=bWFzdGVyfHJvb3R8ODkxOXxpbWFnZS9qcGVnfGFHVm1MMmd5WkM4eE1EYzNNRE13TmpFek9ERTBNaTlKVGtSWVdGaENVa2RZV0ZoZlUxSkNYMU5NWDFOSVRFUmZVMVJNWHpNd01IZ3pNREF1YW5Cbnw1ZTE5NzNjZjAzOTQwMmZmOGU0NTY2MWE4YWIzYzgxZTM5M2I5ZmQyOTBiMzczNzc5ODA0YWM1NWRmMWVhNDEx
1312025 Single Row Ball Bearings

TIMKEN TIMKEN

205KLD

Description

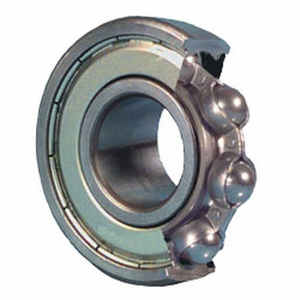

205KLD DEEP GROOVE BALL BEARING ; 25MM ID 52MM OD 15MM WD

Single Row Ball Bearing; 25MM Bore; 52MM Outside Diameter; 15MM Outer Race Width; 1 Metal Shield | 1 Seal; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Steel Cage

Part #

205KLD

BDI #
1312025

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

72.38 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 72.38 / each BDIExpress
QTY

Inventory

Total: 60

Category
Single Row Ball Bearings
Brand
TIMKEN
Manufacturer Name
TIMKEN
Minimum Buy Quantity
N/A
UNSPSC
31171504
Weight / Kilogram
0.131
EAN
0087796045903
Product Group - BDI
B00308
Enclosure
1 Metal Shield | 1 Seal
Precision Class
ABEC 1 | ISO P0
Maximum Capacity / Filling Slot
No
Rolling Element
Ball Bearing
Snap Ring
No
Internal Special Features
Wide Inner Ring
Cage Material
Steel
Enclosure Type
Contact Seal
Internal Clearance
C0-Medium
Inch - Metric
Metric
Other Features
Deep Groove | Conrad | Light Duty | Mechanical Seal
Category - BDI
Single Row Ball Bearing
Harmonized Tariff Code
8482.10.50.68
Noun
Bearing
Keyword String
Ball
Manufacturer URL
https://www.timken.com
Weight / LBS
0.303
Long Description
Single Row Ball Bearing; 25MM Bore; 52MM Outside Diameter; 15MM Outer Race Width; 1 Metal Shield | 1 Seal; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Steel Cage
Outside Diameter
2.047 Inch | 52 Millimeter
Outer Race Width
0.591 Inch | 15 Millimeter
Bore
0.984 Inch | 25 Millimeter
Inner Race Width
0.6 Inch | 15.24 Millimeter
