BFX205-15 https://www.bdiexpress.com/medias/INDASIFBXXXX-BFX-2BLT-300x300.jpg?context=bWFzdGVyfHJvb3R8NTg4NXxpbWFnZS9qcGVnfGFERXhMMmc0TXk4eE1EYzJOekV4TmpFME1EVTNOQzlKVGtSQlUwbEdRbGhZV0ZoZlFrWllYekpDVEZSZk16QXdlRE13TUM1cWNHY3xhODIzYzI0NWJjNzRhMzg5YjBkMTlmNzJkMTA0OTlkZDYzMTcwNGZmNTNhODFjZjU5NjRlNWYyZmQzY2E1MjBk
100160 Flange Block Bearings

AMI BEARINGS AMI BEARINGS

BFX205-15

Description

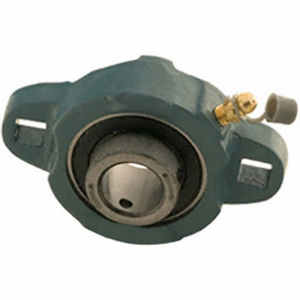

BFX205-15 FLANGED BLOCK BEARING ; 15/16" ID 2-BOLT

Flange Block Bearing; 2 Bolt Flange Block; 15/16" Bore; 3" Bolt Circle Diameter; 3" Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal

Part #

BFX205-15

BDI #
100160

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

56.2586 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 56.26 / each
$ 56.26 / each BDIExpress
QTY

Inventory

Total: 4

Category
Flange Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
0.34
EAN
0808250106271
Product Group - BDI
M06110
Number of Mounting Holes
2
Mounting Method
Set Screw
Housing Style
2 Bolt Flange Block
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
5/16 Inch
Relubricatable
Yes
Insert Part Number
B5-15
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Inch
Other Features
Single Row | Normal Duty
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.amibearings.com
Manufacturer Item Number
BFX205-15
Weight / LBS
0.79
Long Description
Flange Block Bearing; 2 Bolt Flange Block; 15/16" Bore; 3" Bolt Circle Diameter; 3" Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal
Nominal Bolt Circle Diameter Round
3 Inch | 76 Millimeter
Bore
0.938 Inch | 23.825 Millimeter
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
Length Thru Bore
1.063 Inch | 27 Millimeter
Bolt Spacing
3 Inch | 76.2 Millimeter
