C-UKF216D1 https://www.bdiexpress.com/medias/INDNTNFBXXXX-4B-SQ-CUKF-CI-RL-300x300.jpg?context=bWFzdGVyfHJvb3R8MjkxNTV8aW1hZ2UvanBlZ3xhRFJqTDJobE5pOHhNRFF5TWpjNE1qQXpNemsxTUM5SlRrUk9WRTVHUWxoWVdGaGZORUpmVTFGZlExVkxSbDlEU1Y5U1RGOHpNREI0TXpBd0xtcHdad3xlNzY5NzJkZWVhNWE2OGJmN2RmZTFhMTgwYzBlMGI0OWNjZDBiOWEzOGM4NTg1ZDNjMDNjMWFlY2QwYTgzZWU3

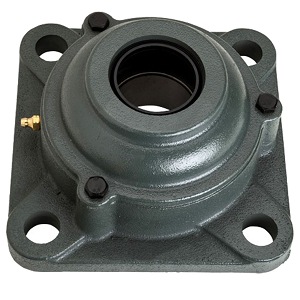

25267972 Flange Block Bearings

NTN NTN

C-UKF216D1

Description

C-UKF216D1 BEARING UNIT, GREEN LINE (SMARTCATALOG)

Flanged Bearing; 70MM Bore; 4 Bolt Square Flange Block Bore; 233.3MM Bolt Circle; 165MM Bolt Spacing; 1 Piece Solid; Adapter Sleeve Mount; Cast Iron; Ball Bearing; 78MM Length Thru Bore; Yes Relubricatable; Contact Seal

Part #

C-UKF216D1

BDI #
25267972

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1005.1049 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,005.10 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Flange Block Bearings
Brand
NTN
Manufacturer Name
NTN
Minimum Buy Quantity
1
UNSPSC
31171501
Weight / Kilogram
9.07
EAN
4547359044621
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Adapter Sleeve
Housing Style
4 Bolt Square Flange Block
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-expansion
Mounting Bolts
20 Millimeter
Relubricatable
Yes
Insert Part Number
UK216D1
Seals
Contact Seal
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Metric
Other Features
Single Row | Spherical | Normal Duty | Has Slinger | Cast Dust Cover | Ope End
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.80
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.ntnglobal.com
Weight / LBS
22
Long Description
Flanged Bearing; 70MM Bore; 4 Bolt Square Flange Block Bore; 233.3MM Bolt Circle; 165MM Bolt Spacing; 1 Piece Solid; Adapter Sleeve Mount; Cast Iron; Ball Bearing; 78MM Length Thru Bore; Yes Relubricatable; Contact Seal
Nominal Bolt Circle Diameter Round
9.2 Inch | 233.3 Millimeter
Bolt Spacing
6.496 Inch | 165 Millimeter
Length Thru Bore
3.071 Inch | 78 Millimeter
Bore
2.756 Inch | 70 Millimeter
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
