FY-20 SD https://www.bdiexpress.com/medias/INDCONFBXXXX-FY-4BLT-300X300.jpg?context=bWFzdGVyfHJvb3R8MTcwNTZ8aW1hZ2UvanBlZ3xhREpsTDJnNU15ODVOVGMxTWpZeE1EYzNOVE0wTG1wd1p3fGY2MzVjN2I5YTU2YWExNmYyNGI4ZWRhOTI1ODFhMzBmOTExZTUyMmE5ZGEwMjY1NGJlMWY5MDRkZWNjNWNiOTY
199022 Flange Block Bearings

CONSOLIDATED BEARING CONSOLIDATED BEARING

FY-20 SD

Description

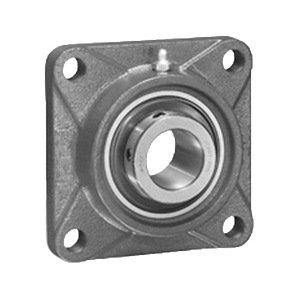

FY-20 SD FOUR BOLT FLANGE UNIT ; W/SET SCREW

Flange Block Bearing; 4 Bolt Square Flange Block; 20MM Bore; 90MM Bolt Circle Diameter; 63.5MM Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal

Part #

FY-20 SD

BDI #
199022

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

87.1689 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 87.17 / each
$ 87.17 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Flange Block Bearings
Brand
CONSOLIDATED BEARING
Manufacturer Name
CONSOLIDATED BEARING
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
0.65
EAN
0644075009317
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Set Screw
Housing Style
4 Bolt Square Flange Block
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Relubricatable
Yes
Insert Part Number
479204-D
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Metric
Other Features
Single Row
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://consbrgs.com
Weight / LBS
1.43
Long Description
Flange Block Bearing; 4 Bolt Square Flange Block; 20MM Bore; 90MM Bolt Circle Diameter; 63.5MM Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
Bore
0.787 Inch | 20 Millimeter
Nominal Bolt Circle Diameter Round
3.5 Inch | 90 Millimeter
Length Thru Bore
1.221 Inch | 31.013 Millimeter
Bolt Spacing
2.5 Inch | 63.5 Millimeter
