UCFL204-13 https://www.bdiexpress.com/medias/INDASIFBXXXX-UCFL-2BLT-300X300.jpg?context=bWFzdGVyfHJvb3R8MTM1ODd8aW1hZ2UvanBlZ3xhRGRpTDJnME5DODVOVGMxTWpVMU16YzFPVEF5TG1wd1p3fDg0YzlhNTcwMjI3MmFkYjM0MWFhNjVkYjk0OTJiNTc3MDZiOGY4M2NhOTAwOTY2NTZhMjU3YmFlZTgzMzI0OTk
110690 Flange Block Bearings

AMI BEARINGS AMI BEARINGS

UCFL204-13

Description

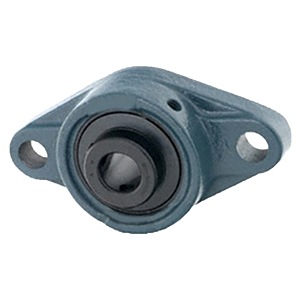

UCFL204-13 FLANGED BLOCK BEARING ; 13/16" ID 2-BOLT

Flange Block Bearing; 2 Bolt Flange Block; 13/16" Bore; 3-1/2" Bolt Circle Diameter; 3-35/64" Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal

Part #

UCFL204-13

BDI #
110690

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

73.3978 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 73.40 / each
$ 73.40 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Flange Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
0.399
EAN
0808250392841
Product Group - BDI
M06110
Number of Mounting Holes
2
Mounting Method
Set Screw
Housing Style
2 Bolt Flange Block
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
3/8 Inch
Relubricatable
Yes
Insert Part Number
UC204-13
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
No Pilot
Inch - Metric
Inch
Other Features
Single Row | Normal Duty
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.amibearings.com
Weight / LBS
0.88
Long Description
Flange Block Bearing; 2 Bolt Flange Block; 13/16" Bore; 3-1/2" Bolt Circle Diameter; 3-35/64" Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal
Nominal Bolt Circle Diameter Round
3.5 Inch | 90 Millimeter
Cartridge Pilot Diameter
0 Inch | 0 Millimeter
Bolt Spacing
3.547 Inch | 90.094 Millimeter
Bore
0.813 Inch | 20.65 Millimeter
Length Thru Bore
1.22 Inch | 31 Millimeter
