悬吊式轴承单元
DODGE
DODGE
SCHB-DL-106
DODGE DODGE
描述

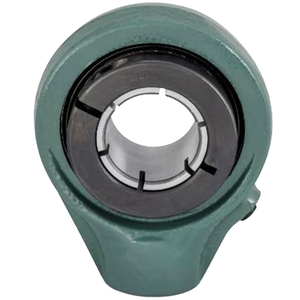

DODGE SCHB-DL-106
Hanger Bearing; 1-3/8" Bore; 2-3/4" Base to Center Height; Concentric Collar; Hanger Unit; Ductile Iron Housing; Ball Bearing; 3.88" Housing Outside Diameter; 1-3/4" Length Thru Bore; 4.69" Housing Overall Length; Relubricatable; INS-DL-106 Insert Part Number
制造商部件号
SCHB-DL-106
BDI部件号
248497
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E8%BD%B4%E6%89%BF/%E8%BD%B4%E6%89%BF%E5%8D%95%E5%85%83%E5%92%8C%E8%BD%B4%E6%89%BF%E8%8A%AF/%E6%82%AC%E5%90%8A%E5%BC%8F%E8%BD%B4%E6%89%BF%E5%8D%95%E5%85%83/SCHB-DL-106/p/248497
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
EAN条码
0782476318314
重量 / Kilogram
1.84
Product Group - BDI
M06110
安装形式
Concentric Collar
壳体材料
Ductile Iron
装配螺纹
3/4 Straight Pipe Female
滚动体
Ball Bearing
轴承芯材料
Steel
伸长/非伸长
Non-Expansion
壳体形状
Hanger Unit
可再润滑
Yes
轴承芯件号
INS-DL-106
密封
Single Lip Contact
额定值
Normal Duty
其它特点
Single Row | Wide Inner Ring | Screw Conveyor Unit | Series D-LOK
英寸 - 公制
Inch
类别 - BDI
Mounted Hanger Units
名称
Bearing
关键字串
Hanger
重量/磅
4.07
详细描述
Hanger Bearing; 1-3/8" Bore; 2-3/4" Base to Center Height; Concentric Collar; Hanger Unit; Ductile Iron Housing; Ball Bearing; 3.88" Housing Outside Diameter; 1-3/4" Length Thru Bore; 4.69" Housing Overall Length; Relubricatable; INS-DL-106 Insert Part Number
壳体全长
4.69 英寸 | 119.126 毫米
底座到中心高度
2.75 英寸 | 69.85 毫米
内圈长
1.75英寸 | 44.45毫米
孔径
1.375 英寸 | 34.925 毫米
壳体外径
3.88 英寸 | 98.552 毫米
