835619 https://www.bdiexpress.com/medias/INDHORBRAKEX-PNEU-XTB10-SHFT-300x300.jpg?context=bWFzdGVyfHJvb3R8NTczMTF8aW1hZ2UvanBlZ3xhRFZpTDJnMFlpODRPVFl3TlRZNU1qRXlPVFU0TG1wd1p3fGZiYmFlNWQ3ZDM1MWRmMjM4MjFjODk3MzlhMDIyOTJjZDI0NWQ3MjQyYzZiZjAwNDJkYjNmYTQ2MDgzMGE4ZTE
456269 Pneumatic Clutches and Brakes

NEXEN NEXEN

835619

Description

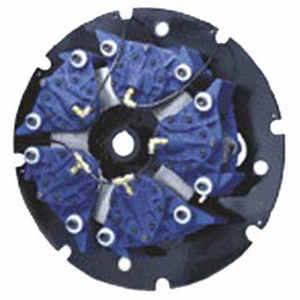

835619 ROTOR HUB ; NON RETURNABLE 41MM BORE

Brake; Pneumatic Activation; Straight | Finished Bore; 41MM Bore; Hollow Bore Input; Shaft Mount; Static Torque LOCO-2633.5Lb-in|STD-4479.25Lb-in

Part #

835619

BDI #
456269

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

2183.6659978700004 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 2,183.67 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Pneumatic Clutches and Brakes
Brand
NEXEN
Manufacturer Name
NEXEN GROUP INC WWW.NEXENGROUP.COM
Minimum Buy Quantity
N/A
Weight / Kilogram
18.573
EAN
0662284247658
Product Group - BDI
C02104
Product Name
Brake
Activation
Pneumatic
Bore Profile
Straight | Finished
Input Type
Hollow Bore
Output Type
Not Applicable
Mounting Method
Shaft
Torque
Static Torque LOCO-2633.5Lb-in | STD-4479.25Lb-in
Product Type
Friction Facing | Tension Control
Actuation/Return
Air
Product Series
XTB10
Housing Style
Cylindrical
Shaft-Thru/End
End
Direction of Rotation
Counter Clockwise
Maximum RPM
4000
Pressure
1 to 85psi
Thermal Capacity
14.9HP
Application
Paper | Film | Rubber | Labels | Textiles | Laminates | Paperboard | Metal Strip | Non-Wovens | Foil | Plastics | Wire
Inch - Metric
Metric
Other Features
Air Cooled | Quick Change Facing | Black Oxide Finish | Open Design | High Thermal Capacity | Wide Torque Range | Heavy Duty
Category - BDI
Clutches and Brakes
Noun
Braking System
Keyword String
Air/Pneumatic
Manufacturer URL
http://www.nexengroup.com
Manufacturer Item Number
835619
Weight / LBS
41
Long Description
Brake; Pneumatic Activation; Straight | Finished Bore; 41MM Bore; Hollow Bore Input; Shaft Mount; Static Torque LOCO-2633.5Lb-in|STD-4479.25Lb-in
Port Size
0 Inch | 0 Millimeter
Pilot Diameter
0 Inch | 0 Millimeter
Bore
1.614 Inch | 41 Millimeter
