27025613 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

18900001-230/60

Description

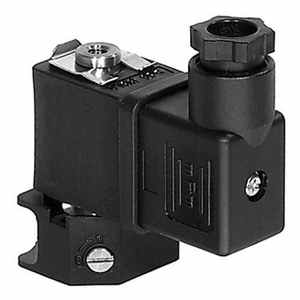

18900001-230/60 VALVE, 3/2 NC CNOMO MOUNT 1.2 MM NBR (SMARTCATALOG)

Valve; M5 Port; 3 Port - 3 Way; 2 Position; Pneumatic; 230/60 VAC; Solenoid - Manual/Spring Return; 145 PSI; 14 To 140 Deg F; Buna-N Seal; Plastic

Part #

18900001-230/60

BDI #
27025613

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

372.036 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 372.04 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
M5
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Manual | Spring Return
Voltage
230/60 VAC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Buna-N
Body Material
Plastic
Inch - Metric
Metric
Other Features
With DIN Connector
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; M5 Port; 3 Port - 3 Way; 2 Position; Pneumatic; 230/60 VAC; Solenoid - Manual/Spring Return; 145 PSI; 14 To 140 Deg F; Buna-N Seal; Plastic
Overall Width
1.142 Inch | 29 Millimeter
Overall Length
2.953 Inch | 75 Millimeter
Overall Height
2.52 Inch | 64 Millimeter
