8030G013AC48/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8030G010-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTIzNTR8aW1hZ2UvanBlZ3xhR1JpTDJoaE1pOHhNRGM1TnpjMk1Ea3pPREF4TkM5SlRrUkJVMVpXUVV4V1JWaGZPREF6TUVjd01UQmZRbEpUWHpNd01IZ3pNREF1YW5CbnxhZmEwNTJkMjBlMzg2MjNmZDQyZTliMGFkNjgwMWZmMmI0YzJhNjZmNzgzMzhmN2ZiZTIwYmI4MWUwMTNmNzBm
27238991 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8030G013AC48/60D

Description

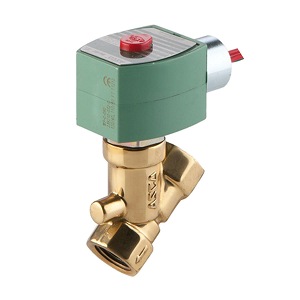

8030G013AC48/60D SOLENOID VALVE, 3/8 X 3/8 2NC BRASS 10.1/F W (SMARTCATALOG)

Valve; Solenoid; 3/8" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 48/60 VAC; Solenoid/Spring Return; 15 PSI; 32 To 200 Deg F; Buna-N Seal; Brass

Part #

8030G013AC48/60D

BDI #
27238991

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

595.0207 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 595.02 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Shutoff | Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
48/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
15 PSI
Operating Pressure Range
0 To 15 PSI
Operating Temperature Range
32 To 200 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
1.8 Cv Factor | 3/8" Orifice Size | Normally Closed | Direct Acting | Ambient Temperature 0 To 52 Deg C
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Shutoff Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.27
Long Description
Valve; Solenoid; 3/8" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 48/60 VAC; Solenoid/Spring Return; 15 PSI; 32 To 200 Deg F; Buna-N Seal; Brass
Overall Height
3.99 Inch | 101.346 Millimeter
Overall Width
1.951 Inch | 49.555 Millimeter
Overall Length
3.27 Inch | 83.058 Millimeter
