8030G083AC12/60 https://www.bdiexpress.com/medias/INDASVVALVEX-8030G082-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTU3MjB8aW1hZ2UvanBlZ3xhR1ExTDJobU9DOHhNRGM1TnpjMk1UTTVOamMyTmk5SlRrUkJVMVpXUVV4V1JWaGZPREF6TUVjd09ESmZRbEpUWHpNd01IZ3pNREF1YW5CbnwyNjI4NGFlYjczNjc5ZmQxMGQ3NTdiNjIxMDdkOGY2OTM1OTdhZDY0MWEzMjY1OTE2ZTQ0NTkyZTEyNDFkNzhk
20691026 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8030G083AC12/60

Description

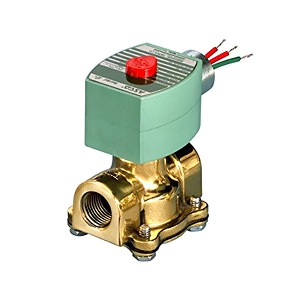

8030G083AC12/60 SOLENOID VALVE ; 3/4"X3/4" 2NO BRASS 10.1W

Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 12/60 VAC; Solenoid/Spring Return; 2 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8030G083AC12/60D

BDI #
20691026

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

973.9164999999999 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 973.92 / each
$ 973.92 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
12/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
2 PSI
Operating Pressure Range
0 To 2 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
5.5 Cv Factor | 3/4" Orifice Size | General Purpose | Normally Open | Direct Acting | Ambient Temperature 0 To 52 Deg C
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
3.06
Long Description
Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 12/60 VAC; Solenoid/Spring Return; 2 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Length
3.54 Inch | 89.916 Millimeter
Overall Width
2.283 Inch | 58 Millimeter
Overall Height
3.97 Inch | 100.838 Millimeter
