8210D014DC120/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8210D014-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NjIwMDh8aW1hZ2UvanBlZ3xhREkxTDJnNU15OHhNRGd3TkRZek9UVXpNVEF6T0M5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVRd01UUmZRbEpUWHpNd01IZ3pNREF1YW5CbnwyYjMyZDY4MDY2MTBkZDFlYjUxMmYxMGU2YmRlZmIwYzQwZDk0ZDcxZWJkN2FjNmJkNjY2MWE1ZThmZTM2ZGQ0
20691236 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8210D014DC120/DC

Description

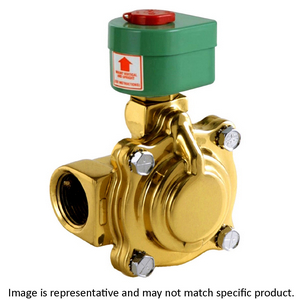

8210D014DC120/DC SOLENOID VALVE ; 1"X1" 2NO BRASS 16.8W

Valve; Solenoid; 1" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 120 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8210D014DC120/DCD

BDI #
20691236

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1597.9935 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,597.99 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
1" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
120 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
125 PSI
Operating Pressure Range
5 To 125 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
13 Cv Factor | 1" Orifice Size | Air - Inert Gas - Light Oil - Water Fluid | Normally Open | Diaphragm Construction | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
10.49
Long Description
Valve; Solenoid; 1" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 120 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Length
3.75 Inch | 95.25 Millimeter
Overall Width
3.095 Inch | 78.613 Millimeter
Overall Height
6.531 Inch | 165.887 Millimeter
