8210G003 24/60VDC https://www.bdiexpress.com/medias/INDASVVALVEX-8210G003-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTg5ODl8aW1hZ2UvanBlZ3xhR0l5TDJoaE1DOHhNRGd3TkRZek9Ua3lOREkxTkM5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVjd01ETmZRbEpUWHpNd01IZ3pNREF1YW5CbnxlNmEyMmMzZmU2ODA0ZDA5YzJlMDEwZjZjZDZkZGZhMWRlMDhhODU0YWJhNTM4Y2Q5OWNlNzIwYTA4ZDI5ZDgz
21544407 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8210G003 24/60VDC

Description

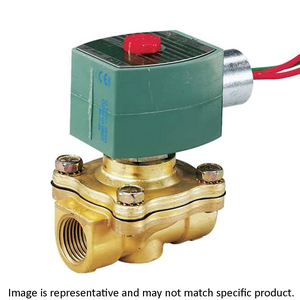

8210G003 24/60VDC SOLENOID VALVE ; POR 3/4" 2P-2W 2POS HYD-PNEU 24/60VDC

Solenoid Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; 24/60 VAC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 250 PSI/Light Oil 100 PSI/Water 150 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8210G003 24/60VDC

BDI #
21544407

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

452.21 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 452.21 / each BDIExpress
QTY

Inventory

Total: 2

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 250 PSI | Light Oil 100 PSI | Water 150 PSI
Operating Pressure Range
Air - Inert Gas 5 To 250 PSI | Light Oil 5 To 100 PSI | Water 5 To 150 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
6.5 Cv Factor | 3/4" Orifice Size | Normally Closed | Air - Inert Gas - Water - Light Oil Fluid
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; 24/60 VAC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 250 PSI/Light Oil 100 PSI/Water 150 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Width
2.75 Inch | 69.85 Millimeter
Overall Height
4.16 Inch | 105.664 Millimeter
Overall Length
3.84 Inch | 97.545 Millimeter
