8210G035MBAC100/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8210G027-MB-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTU0MzZ8aW1hZ2UvanBlZ3xhRFJtTDJnME1pOHhNRGd3TkRZM05EUXlPRGsxT0M5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVjd01qZGZUVUpmUWxKVFh6TXdNSGd6TURBdWFuQm58ZmU3NzRiYWM1MWNjYjUzZTY0ZjI1NTM3MGM3NTJjZDlkMTRmNzk0NWIyOGM2NDgwYzg0MjA3Mjc5NWQ0NzZmYg
27247829 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8210G035MBAC100/60D

Description

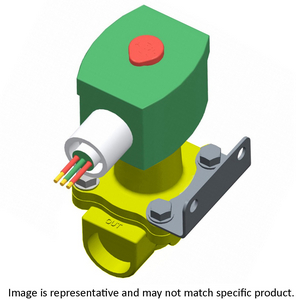

8210G035MBAC100/60D SOLENOID VALVE, 3/4 X 3/4 2NO BRASS 10.1/F W (SMARTCATALOG)

Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 100/60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas -Water 150 PSI/Light Oil 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8210G035MBAC100/60D

BDI #
27247829

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

714.2638000000001 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 714.26 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
100/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas - Water 150 PSI | Light Oil 125 PSI
Operating Pressure Range
Air - Inert Gas - Water 5 To 150 PSI | Light Oil 5 To 125 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
5.5 Cv Factor | 3/4" Orifice Size | Normally Open | Air - Inert Gas - Water - Light Oil Fluid | Mounting Bracket | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
5.4
Long Description
Valve; 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 100/60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas -Water 150 PSI/Light Oil 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Height
4.678 Inch | 118.821 Millimeter
Overall Length
3.545 Inch | 90.043 Millimeter
Overall Width
2.752 Inch | 69.901 Millimeter
