8220G027AC120/60 110/50 https://www.bdiexpress.com/medias/INDASVVALVEX-8220G007-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NjI4NzZ8aW1hZ2UvanBlZ3xhREpoTDJoa05TOHhNRGd3TnpFeE1EVTJOVGt4T0M5SlRrUkJVMVpXUVV4V1JWaGZPREl5TUVjd01EZGZRbEpUWHpNd01IZ3pNREF1YW5CbnwwYTAyMWU0ZTUwYTkxZmVkZWNhYThmNzRmZDJhNjcyMTM1MGY5YmUyNmFhYTdlNGU4ZTQ3N2NlZmQ5YzY1YWYy
20693292 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8220G027AC120/60 110/50

Description

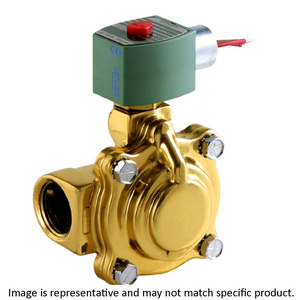

8220G027AC120/60 110/50 SOLENOID VALVE ; 1-1/4" X 1-1/8" 2NC BRS 10.1/H W WTR/STM

Valve; 1-1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 110/50 VAC - 120/60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Hot Water 150 PSI/Steam 125 PSI; Hot Water 32 To 210 Deg F/Steam 32 To 353 Deg F; EPDM Seal

Part #

8220G027AC120/60,110/50D

BDI #
20693292

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1664.87 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,664.87 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1-1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
110/50 VAC | 120/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Hot Water 150 PSI | Steam 125 PSI
Operating Pressure Range
Hot Water 5 To 150 PSI | Steam 5 To 125 PSI
Operating Temperature Range
Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F
Seal Type
EPDM
Body Material
Brass
Inch - Metric
Inch
Other Features
15 Cv Factor | 1-1/8" Orifice Size | Hot Water - Steam Fluid | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
5
Long Description
Valve; 1-1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 110/50 VAC - 120/60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Hot Water 150 PSI/Steam 125 PSI; Hot Water 32 To 210 Deg F/Steam 32 To 353 Deg F; EPDM Seal
Overall Length
4.025 Inch | 102.235 Millimeter
Overall Height
5.995 Inch | 152.273 Millimeter
Overall Width
3.52 Inch | 89.408 Millimeter
