8262H090VHAC440/50D https://www.bdiexpress.com/medias/INDASVVALVEX-8262H090-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDgxMDZ8aW1hZ2UvanBlZ3xhREU0TDJoallTOHhNRGM1T1RVeE16RXdPRFV4TUM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWtnd09UQmZRbEpUWHpNd01IZ3pNREF1YW5CbnxiODE2OWExYzYyM2ViODYxYWJkZWNkMWIxOGIyNDUwOGU0OGRhYzY3MzU4YmFkOTJlZjY2MmI0OTc1MTEyMGNl
27249242 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8262H090VHAC440/50D

Description

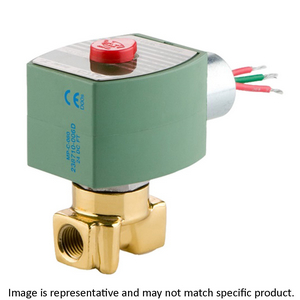

8262H090VHAC440/50D SOLENOID VALVE, 1/4 X 9/32 2NC BRASS 6.1/F W (SMARTCATALOG)

Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 440/50 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas - Water 36 PSI/Light Oil 33 PSI; -13 To 180 Deg F; Buna-N Seal; Brass

Part #

8262H090VHAC440/50D

BDI #
27249242

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

773.7463 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 773.75 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
440/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas - Water 36 PSI | Light Oil 33 PSI
Operating Pressure Range
Air - Inert Gas - Water 0 To 36 PSI | Light Oil 0 To 33 PSI
Operating Temperature Range
-13 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.88 Cv Factor | 9/32" Orifice Size | Air - Inert Gas - Water - Light Oil Fluid | Normally Closed | General Service | Direct Acting | NBR Disc | Ambient Temperature -25 To 55 Deg C | High Vacuum | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.01
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 440/50 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas - Water 36 PSI/Light Oil 33 PSI; -13 To 180 Deg F; Buna-N Seal; Brass
Overall Height
2.96 Inch | 75.184 Millimeter
Overall Width
1.69 Inch | 42.926 Millimeter
