液压和气动阀门
ASCO VALVE
ASCO VALVE
8262H182EMBAC100/60D
ASCO VALVE ASCO VALVE
描述

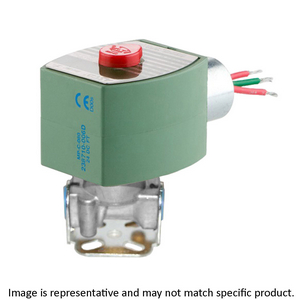

ASCO VALVE 8262H182EMBAC100/60D
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 100/60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 590 PSI/Light Oil - Water 410 PSI; -13 To 180 Deg F; EPDM Seal; Stainless Steel
制造商部件号
8262H182EMBAC100/60D
BDI部件号
27229499
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E6%B6%B2%E5%8E%8B/%E9%98%80%E9%97%A8-%E6%8E%A7%E5%88%B6%E8%A3%85%E7%BD%AE/%E6%B6%B2%E5%8E%8B%E5%92%8C%E6%B0%94%E5%8A%A8%E9%98%80%E9%97%A8/8262H182EMBAC100-60D/p/27229499
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
1
重量 / Kilogram
0
Product Group - BDI
F02352
阀门类型
Solenoid
接口类型
1/4" FNPT
接口数量/通路数
2 Port | 2 Way
位数
2 Position
驱动方式
Solenoid | Spring Return
电压
100/60 VAC
介质
Hydraulic | Pneumatic
最大压力
Air - Inert Gas 590 PSI | Light Oil - Water 410 PSI
工作压力范围
Air - Inert Gas 0 To 590 PSI | Light Oil - Water 0 To 410 PSI
工作温度范围
-13 To 180 Deg F
密封类型
EPDM
阀体材质
Stainless Steel
英寸 - 公制
Inch
其它特点
0.21 Cv Factor | 3/32" Orifice Size | Air - Inert Gas - Water - Light Oil Fluid | Normally Closed | General Service | Direct Acting | NBR Disc | Ambient Temperature -25 To 55 Deg C | Mounting Bracket | 18" Lead
类别 - BDI
Hydraulic and Pneumatic Valve
名称
Valve
关键字串
Solenoid
重量/磅
1.28
详细描述
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 100/60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 590 PSI/Light Oil - Water 410 PSI; -13 To 180 Deg F; EPDM Seal; Stainless Steel
总宽
1.95 英寸 | 49.53 毫米
总高
3.12 英寸 | 79.25 毫米
