8262H208EAC100/50D https://www.bdiexpress.com/medias/INDASVVALVEX-8262H001-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDgxMDZ8aW1hZ2UvanBlZ3xhR0l6TDJnNU1TOHhNRGd3TkRZM05qUTJNRFUzTkM5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWtnd01ERmZRbEpUWHpNd01IZ3pNREF1YW5CbnxiMTZlN2RhZGQ2ZDFmMDg3ZGNhMjhjZDQzNDE0MjQ3Yzk3ZDdmZjlmODQ3NWY2OTlhNDRjNmJlMzMyZjJhMTFl
27240981 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8262H208EAC100/50D

Description

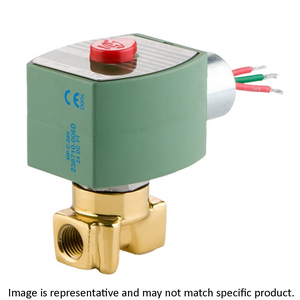

8262H208EAC100/50D SOLENOID VALVE, 1/4 X 7/32 2NC BRASS 10.1/F W (SMARTCATALOG)

Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 100/50 VAC; Solenoid/Spring Return; 100 PSI; 32 To 180 Deg F; EPDM Seal; Brass

Part #

8262H208EAC100/50D

BDI #
27240981

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

435.22650000000004 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 435.23 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
100/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
100 PSI
Operating Pressure Range
0 To 100 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
EPDM
Body Material
Brass
Inch - Metric
Inch
Other Features
0.73 Cv Factor | 7/32" Orifice Size | Air - Inert Gas - Water Fluid | Normally Closed | General Service | NBR Disc | Ambient Temperature -25 To 55 Deg C
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 100/50 VAC; Solenoid/Spring Return; 100 PSI; 32 To 180 Deg F; EPDM Seal; Brass
Overall Width
1.95 Inch | 49.53 Millimeter
Overall Length
3.125 Inch | 79.375 Millimeter
Overall Height
3.128 Inch | 79.451 Millimeter
